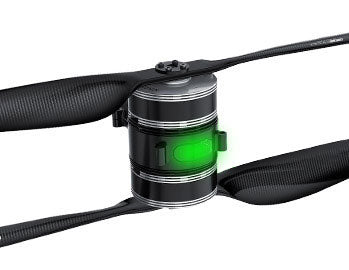

X-701 Combo Pack Coaxial Type (Integrated Propulsion System) Alpha 80A 135/280KV

  • Polymer propellers are not recommended for coaxial setups
  • Free of complicated mounting process
  • Turn-key system, perfect compatibility, superb cost performance
  • Fast and convenient

Direction:

  • CW
  • CCW

Parameter:

  • MN701-S KV135+Alpha 80A HV Round
  • MN701-S KV280+Alpha 80A HV Round

Quantity:

  • Best Match
  • P24*7.2-10mm Hole Prop-2PCS/PAIR

Includes 1 CW + 1 CCW

SKU: X-701 Combo Pack

CAD: $168 $176.9

  • Longer Flight Time
  • 100% Balance
  • Higher Loaded Ability
  • Lightweight / High-strength

USD200 Consumption Free Shipping by International Express (Excl. Remote Areas and Special Items).

Specs

  • Model: X-701KV135
  • Lead Cable Length: 580mm
  • Dimension: 126.5*81.5*126.1mm
  • Arm Set Weight (Incl. Cable): 1175g
  • Configuration: 24N28P
  • Shaft Diameter: IN:8mm OUT:8mm
  • Idle Current (24V): 0.9A
  • Rated Voltage (Lipo): 12S
  • Internal Resistance: 94mΩ
  • ESC Recommendation: ALPHA 80A 12S
  • Max. Power (180s): 434W
  • Propeller Recommendation: P24*7.2

Test Data

  • Type: X-701-X KV135 (Alpha 80A 12S)
  • Voltage: 12S (48V)
  • Propeller: P24*7.2
Throttle (%) Current (A) Thrust (g) Torque (N.m) RPM Motor Efficiency (%) Efficiency (gf/W) Operating Temperature (℃)
40% 5.37 2510 0.82 2358 79.44 11.46 74
45% 7.26 3179 1.03 2624 81.20 10.73
50% 9.57 3901 1.25 2889 82.70 9.99
55% 12.27 4674 1.48 3149 83.16 9.28
60% 15.51 5538 1.75 3411 83.98 8.72
65% 19.16 6441 2.02 3666 84.30 8.18
70% 23.35 7360 2.30 3911 84.41 7.66
75% 28.11 8355 2.60 4156 84.63 7.23
80% 33.56 9413 2.93 4397 84.11 6.82
85% 39.57 10456 3.25 4629 83.50 6.44
90% 46.26 11581 3.59 4860 83.26 6.12
95% 49.99 12166 3.77 4978 82.99 5.96
100% 50.75 12304 3.82 5000 83.13 5.95

Note: Motor temperature is motor surface temperature @100% throttle running 5mins.
(Data above based on bench test are for reference only, comparison with that of other motor types is not recommended.)

Matching Table

Arm Set Compatible Tube Size Motor KV Default ESC Default Propeller Propeller Options Custom ESC
501-X 25mm/30mm (25mm=30mm+adapter) MN501-S KV240 ALPHA 60A 12S V1.2 MF1503 P15*5, FA15.2*5 FLAME 60A 12S
KV300 ALPHA 40A 6S MF2009 P20*6, FA20.2*6.6 ALPHA 60A 12S V1.2, AIR 40A
KV360 MF1806 P18*6.1, FA18.2*5.9
505-X MN505-S KV320 ALPHA 60A 6S MF2211 P22*6.6, FA22.2*7.2 FLAME 60A 12S
KV380 MF1806 P18*6.1, FA18.2*5.9
601-X MN601-S KV170 ALPHA 60A 12S V1.2 MF2009 P20*6, FA20.2*6.6 FLAME 60A 12S
KV320 ALPHA 60A 6S P20*6, FA20.2*6.6
605-X MN605-S KV170 ALPHA 60A 12S V1.2 MF2211 P22*6.6, FA22.2*7.2 FLAME 60A 12S
KV320 ALPHA 60A 6S
701-X MN701-S KV135 ALPHA 80A 12S Round MF2614 P24*7.2-10mm Hole, G24*7.8, FA24.2*7.9 /
705-X MN705-S KV125 ALPHA 80A 12S Round MF2614 G26*8.5, FA26.2*8.5 /
U8Ⅱ-X U8Ⅱ KV85 ALPHA 60A 12S V1.2 MF2815 G28*9.2, FA28.2*9.2 FLAME 60A 12S
KV100
KV150 ALPHA 60A 6S
KV190
6007Ⅱ-X 25mm/28mm 6007Ⅱ KV160 ALPHA 60A 12S V1.2 MF2211 FA22.2*7.2, NS22*6.6, P22*6.6 FLAME 60A 12S
KV320 ALPHA 60A 6S
P60-X 25mm/30mm (25mm=30mm+adapter) P60 KV170 FLAME 60A 12S MF2211 P22*6.6, G22*7.2 /
P80-X 30mm/35mm or 40mm (Notify tube size) P80 KV100/KV120 ALPHA 80A 12S MF3016 P30*10, G30*10.5 FLAME 80A 12S, FLAME 100A 14S
X-501 25mm/30mm (25mm=30mm+adapter) MN501-S KV240 ALPHA 60A 12S V1.2 P15*5 / FLAME 60A 12S
KV300 ALPHA 40A 6S P20*6 / ALPHA 60A 6S, AIR 40A
KV360 P18*6.1 /
X-505 MN505-S KV320 ALPHA 60A 6S P22*6.6 / FLAME 60A 12S
KV380 P18*6.1 /
X-601 MN601-S KV170 ALPHA 60A 12S V1.2 P20*6 / FLAME 60A 12S
KV320 ALPHA 60A 6S /
X-605 MN605-S KV170 ALPHA 60A 12S V1.2 P22*6.6 / FLAME 60A 12S
KV320 ALPHA 60A 6S /
X-U8Ⅱ U8Ⅱ KV85 ALPHA 60A 12S V1.2 G28*9.2 / FLAME 60A 12S
KV100 /
KV150 ALPHA 60A 6S /
KV190 /
X-701 30mm/35mm (30mm=35mm+adapter) MN701-S KV135 ALPHA 80A 12S Round P24*7.2-10mm Hole, G24*7.8 /
X-705 MN705-S KV125 ALPHA 80A 12S Round G26*8.5 /

NOTE: order qty should be an EVEN number.
