X-605KV170

T-Motor

X-605 Combo Pack Coaxial Type (Integrated Propulsion System ) UAV Moto...

X-605 Combo Pack Coaxial Type (Integrated Propulsion System ) UAV Moto...

$445.00 USD
$445.00 USD
Sale Sold out

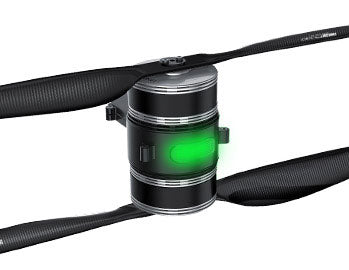

X-605 Combo Pack Coaxial Type (Integrated Propulsion System) UAV Motor 170/320KV

Price: 445.00

Available points: 22000 Points

Points reward: 445 Points

  • Polymer propellers are not recommended for coaxial setups
  • Free of complicated mounting process
  • Turn-key system, perfect compatibility, superb cost performance
  • Fast and convenient

Direction:

  • CW
  • CCW

Parameter:

  • MN605-S KV320 + Alpha 60A LV
  • MN605-S KV170 + Alpha 60A HV

Quantity: Best Match

P22*6.6 Prop - 2PCS/PAIR

Includes 1 CW + 1 CCW

Price: $133.5 $140.9

  • Longer Flight Time
  • 100% Balance
  • Higher Loaded Ability
  • Lightweight / High-strength

Specifications

  • Model: X-605KV170
  • Lead Cable Length: 630mm
  • Dimension: 124.8*72*121mm
  • Arm Set Weight (Incl. Cable): 1100g
  • Configuration: 24N28P
  • Shaft Diameter: IN:6mm OUT:6mm
  • Idle Current (24V): 1.2A
  • Rated Voltage (Lipo): 12S
  • Internal Resistance: 65mΩ
  • ESC Recommendation: ALPHA 60A 12S
  • Max. Power (180s): 536W
  • Propeller Recommendation: P22*6.6
  • Model: 605-XKV320
  • Lead Cable Length: 630mm
  • Dimension: 124.8*72*121mm
  • Arm Set Weight (Incl. Cable): 1008g
  • Configuration: 24N28P
  • Shaft Diameter: IN:6mm OUT:6mm
  • Idle Current (24V): 3.4A
  • Rated Voltage (Lipo): 6S
  • Internal Resistance: 21mΩ
  • ESC Recommendation: ALPHA 60A 6S
  • Max. Power (180s): 450W
  • Propeller Recommendation: P22*6.6

Test Data

Type: X-605 KV170 (Alpha 60A 12S)
Voltage: 12S (48V)
Propeller: P22*6.6

Throttle (%) Current (A) Thrust (g) Torque (N.m) RPM Motor Efficiency (%) Efficiency (gf/W) Operating Temperature (℃)
40% 6.49 2594 0.79 2862 76.50 13.03 88 (Ambient Temperature: 25)
45% 8.77 3289 1.00 3189 78.89 11.86
50% 11.66 4045 1.22 3519 80.44 10.83
55% 14.92 4864 1.46 3840 81.73 9.95
60% 18.85 5764 1.73 4163 83.01 9.20
65% 23.39 6735 2.00 4477 83.74 8.62
70% 28.57 7725 2.30 4784 83.88 8.07
75% 34.41 8772 2.60 5083 84.10 7.60
80% 41.11 9872 2.94 5387 84.20 7.18
85% 48.41 10993 3.26 5676 83.91 6.84
90% 56.31 12137 3.61 5953 83.72 6.53
95% 64.24 13175 3.93 6208 83.57 6.25
100% 68.66 13755 4.10 6337 83.43 6.13

Type: X-605 KV320 (Alpha 60A 6S)
Voltage: 6S (24V)
Propeller: P22*6.6

Throttle (%) Current (A) Thrust (g) Torque (N.m) RPM Motor Efficiency (%) Efficiency (gf/W) Operating Temperature (℃)
40% 11.85 1490 0.71 2702 73.40 10.10 64 (Ambient Temperature: 25)
45% 15.90 1873 0.89 3000 75.64 9.51
50% 20.59 2256 1.08 3280 77.14 8.89
55% 26.11 2687 1.27 3551 78.57 8.37
60% 32.54 3123 1.48 3819 79.22 7.90
65% 39.58 3580 1.70 4067 79.74 7.50
70% 47.39 4019 1.91 4298 80.04 7.10
75% 55.79 4468 2.12 4518 80.16 6.78
80% 65.28 4948 2.34 4728 80.27 6.48
85% 74.80 5362 2.55 4915 80.09 6.19
90% 84.96 5780 2.75 5091 79.83 5.96
95% 94.47 6163 2.93 5253 79.58 5.75
100% 98.67 6479 2.98 5355 79.34 5.55

Note: Motor temperature is motor surface temperature @100% throttle running 5mins.
(Data above based on bench test are for reference only, comparison with that of other motor types is not recommended.)

Matching Table

Arm Set Compatible Tube Size Motor KV Default ESC Default Propeller Propeller Options Custom ESC
501-X 25mm/30mm (25mm=30mm+adapter) MN501-S KV240 ALPHA 60A 12S V1.2 MF1503 P15*5, FA15.2*5 FLAME 60A 12S
KV300 ALPHA 40A 6S MF2009 P20*6, FA20.2*6.6 ALPHA 60A 12S V1.2, AIR 40A
KV360 MF1806 P18*6.1, FA18.2*5.9
505-X MN505-S KV320 ALPHA 60A 6S MF2211 P22*6.6, FA22.2*7.2 FLAME 60A 12S
KV380 MF1806 P18*6.1, FA18.2*5.9
601-X MN601-S KV170 ALPHA 60A 12S V1.2 MF2009 P20*6, FA20.2*6.6 FLAME 60A 12S
KV320 ALPHA 60A 6S P20*6, FA20.2*6.6
605-X MN605-S KV170 ALPHA 60A 12S V1.2 MF2211 P22*6.6, FA22.2*7.2 FLAME 60A 12S
KV320 ALPHA 60A 6S
701-X MN701-S KV135 ALPHA 80A 12S Round MF2614 P24*7.2-10mm Hole, G24*7.8, FA24.2*7.9
705-X MN705-S KV125 ALPHA 80A 12S Round MF2614 G26*8.5, FA26.2*8.5
U8Ⅱ-X U8Ⅱ KV85 ALPHA 60A 12S V1.2 MF2815 G28*9.2, FA28.2*9.2 FLAME 60A 12S
U8 Lite-X U8 Lite KV100
XU8-X XU8 KV150 ALPHA 60A 6S
KV190
6007Ⅱ-X 25mm/28mm 6007Ⅱ KV160 ALPHA 60A 12S V1.2 MF2211 FA22.2*7.2, NS22*6.6, P22*6.6 FLAME 60A 12S
KV320 ALPHA 60A 6S
P60-X 25mm/30mm (25mm=30mm+adapter) P60 KV170 FLAME 60A 12S MF2211 P22*6.6, G22*7.2
P80-X 30mm/35mm or 40mm (Notify tube size) P80 KV100/KV120 ALPHA 80A 12S MF3016 P30*10, G30*10.5 FLAME 80A 12S, FLAME 100A 14S
X-501 25mm/30mm (25mm=30mm+adapter) MN501-S KV240 ALPHA 60A 12S V1.2 P15*5 FLAME 60A 12S
KV300 ALPHA 40A 6S P20*6 ALPHA 60A 6S, AIR 40A
KV360 P18*6.1
X-505 MN505-S KV320 ALPHA 60A 6S P22*6.6 FLAME 60A 12S
KV380 P18*6.1
X-601 MN601-S KV170 ALPHA 60A 12S V1.2 P20*6 FLAME 60A 12S
KV320 ALPHA 60A 6S
X-605 MN605-S KV170 ALPHA 60A 12S V1.2 P22*6.6 FLAME 60A 12S
KV320 ALPHA 60A 6S
X-U8Ⅱ U8Ⅱ KV85 ALPHA 60A 12S V1.2 G28*9.2 FLAME 60A 12S
X-U8 Lite U8 Lite KV100
KV150 ALPHA 60A 6S
KV190
X-701 30mm/35mm (30mm=35mm+adapter) MN701-S KV135 ALPHA 80A 12S Round P24*7.2-10mm Hole G24*7.8
X-705 MN705-S KV125 ALPHA 80A 12S Round G26*8.5

NOTE: order qty should be an EVEN number.
