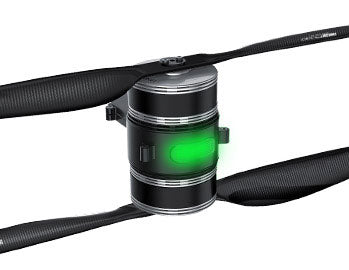

X-601 Combo Pack Coaxial Type (Integrated Propulsion System) UAV Motor 170/320KV

  • Polymer propellers are not recommended for coaxial setups
  • Free of complicated mounting process
  • Turn-key system, perfect compatibility, superb cost performance
  • Fast and convenient

Direction:

  • CW
  • CCW

Parameter:

  • MN601-S KV320 + Alpha 60A LV
  • MN601-S KV170 + Alpha 60A HV

Quantity:

  • Best Match
  • P20*6 Prop - 2PCS/PAIR

Includes 1 CW + 1 CCW

Price: $103 $108.9

  • Longer Flight Time
  • 100% Balance
  • Higher Loaded Ability
  • Lightweight / High-strength

USD200 Consumption Free Shipping by International Express (Excl. Remote Areas and Special Items).

Specifications

Model: X-601KV170
Lead Cable Length: 630mm
Dimension: 124.8*72*110mm
Arm Set Weight (Incl. Cable): 825g
Configuration: 24N28P
Shaft Diameter: IN:6mm OUT:6mm
Idle Current (24V): 0.8A
Rated Voltage (Lipo): 6-12S
Internal Resistance: 115mΩ
ESC Recommendation: ALPHA 60A 12S
Max. Power (180s): 348W
Propeller Recommendation: P20*6

Model: 601-XKV320
Lead Cable Length: 630mm
Dimension: 124.8*72*110mm
Arm Set Weight (Incl. Cable): 829g
Configuration: 24N28P
Shaft Diameter: IN:6mm OUT:6mm
Idle Current (24V): 2.1A
Rated Voltage (Lipo): 6S
Internal Resistance: 39mΩ
ESC Recommendation: ALPHA 60A 6S
Max. Power (180s): 264W
Propeller Recommendation: P20*6

Test Data

Type Voltage (V) Propeller Throttle (%) Current (A) Thrust (g) Torque (N.m) RPM Motor Efficiency (%) Efficiency (gf/W) Operating Temperature (℃)
X-601 KV170 (Alpha 60A 12S) 12S (48V) P20*6 40% 4.08 1732 0.48 2928 74.32 10.53 67 (Ambient Temperature: 25)
45% 5.53 2201 0.60 3264 76.68 9.89
50% 7.25 2728 0.74 3592 78.55 9.31
55% 9.28 3302 0.88 3921 80.27 8.82
60% 11.79 3927 1.05 4256 81.13 8.28
65% 14.57 4602 1.22 4580 82.24 7.86
70% 17.78 5303 1.41 4896 83.18 7.43
75% 21.46 6036 1.60 5203 83.06 6.97
80% 25.68 6831 1.81 5516 83.32 6.62
85% 30.31 7649 2.02 5817 83.45 6.30
90% 35.45 8476 2.24 6107 83.22 5.97
95% 40.44 9264 2.45 6372 83.20 5.74
100% 43.26 9691 2.56 6502 83.15 5.60
X-601 KV320 (Alpha 60A 6S) 6S (24V) P20*6 40% 6.84 1475 0.41 2738 72.09 10.78 54 (Ambient Temperature: 25)
45% 9.15 1862 0.51 3045 74.49 10.20
50% 11.95 2307 0.62 3346 76.89 9.76
55% 15.22 2759 0.74 3641 78.27 9.18
60% 19.11 3273 0.88 3937 79.23 8.71
65% 23.47 3812 1.02 4219 80.00 8.30
70% 28.31 4357 1.16 4489 80.34 7.88
75% 33.75 4934 1.30 4751 80.63 7.53
80% 39.77 5519 1.45 5007 80.77 7.17
85% 46.24 6088 1.60 5252 80.78 6.86
90% 52.82 6630 1.74 5467 80.63 6.57
95% 56.19 6887 1.81 5570 80.59 6.43
100% 60.12 7012 1.90 5569 80.61 6.36

Note: Motor temperature is motor surface temperature @100% throttle running 5mins. (Data above based on bench test are for reference only, comparison with that of other motor types is not recommended.)

Matching Table

Arm Set Compatible Tube Size Motor KV Default ESC Default Propeller Propeller Options Custom ESC
501-X 25mm/30mm (25mm=30mm+adapter) MN501-S KV240 ALPHA 60A 12S V1.2 MF1503 P15*5, FA15.2*5 FLAME 60A 12S
KV300 ALPHA 40A 6S MF2009 P20*6, FA20.2*6.6 ALPHA 60A 12S V1.2, AIR 40A
KV360 MF1806 P18*6.1, FA18.2*5.9
505-X MN505-S KV320 ALPHA 60A 6S MF2211 P22*6.6, FA22.2*7.2 FLAME 60A 12S
KV380 MF1806 P18*6.1, FA18.2*5.9
601-X MN601-S KV170 ALPHA 60A 12S V1.2 MF2009 P20*6, FA20.2*6.6 FLAME 60A 12S
KV320 ALPHA 60A 6S P20*6, FA20.2*6.6
605-X MN605-S KV170 ALPHA 60A 12S V1.2 MF2211 P22*6.6, FA22.2*7.2 FLAME 60A 12S
KV320 ALPHA 60A 6S
701-X MN701-S KV135 ALPHA 80A 12S Round MF2614 P24*7.2-10mm Hole, G24*7.8, FA24.2*7.9
705-X MN705-S KV125 ALPHA 80A 12S Round MF2614 G26*8.5, FA26.2*8.5
U8Ⅱ-X, U8 Lite-X, XU8-X, U8Ⅱ, U8 Lite, XU8 KV85 ALPHA 60A 12S V1.2 MF2815 G28*9.2, FA28.2*9.2 FLAME 60A 12S
KV100
KV150 ALPHA 60A 6S
KV190
6007Ⅱ-X 25mm/28mm 6007Ⅱ KV160 ALPHA 60A 12S V1.2 MF2211 FA22.2*7.2, NS22*6.6, P22*6.6 FLAME 60A 12S
KV320 ALPHA 60A 6S
P60-X 25mm/30mm (25mm=30mm+adapter) P60 KV170 FLAME 60A 12S MF2211 P22*6.6, G22*7.2
P80-X 30mm/35mm or 40mm (Notify tube size) P80 KV100/KV120 ALPHA 80A 12S MF3016 P30*10, G30*10.5 FLAME 80A 12S, FLAME 100A 14S
X-501 25mm/30mm (25mm=30mm+adapter) MN501-S KV240 ALPHA 60A 12S V1.2 P15*5 FLAME 60A 12S
KV300 ALPHA 40A 6S P20*6 ALPHA 60A 6S, AIR 40A
KV360 P18*6.1
X-505 MN505-S KV320 ALPHA 60A 6S P22*6.6 FLAME 60A 12S
KV380 P18*6.1
X-601 MN601-S KV170 ALPHA 60A 12S V1.2 P20*6 FLAME 60A 12S
KV320 ALPHA 60A 6S
X-605 MN605-S KV170 ALPHA 60A 12S V1.2 P22*6.6 FLAME 60A 12S
KV320 ALPHA 60A 6S
X-U8Ⅱ, X-U8 Lite, U8Ⅱ, U8 Lite KV85 ALPHA 60A 12S V1.2 G28*9.2 FLAME 60A 12S
KV100
KV150 ALPHA 60A 6S
KV190
X-701 30mm/35mm (30mm=35mm+adapter) MN701-S KV135 ALPHA 80A 12S Round P24*7.2-10mm Hole, G24*7.8
X-705 MN705-S KV125 ALPHA 80A 12S Round G26*8.5

* NOTE: order qty should be an EVEN number.
