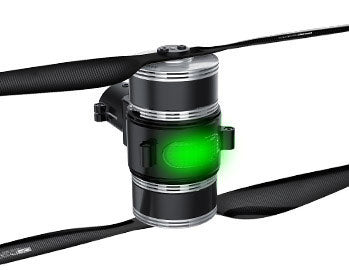

X-505 Combo Pack Coaxial Type (Integrated Propulsion System) Alpha 60A 320/380KV

SKU: X-505 Combo Pack

Price: 379.00 CAD

Available points: 19000 Points

Points reward: 379 Points

  • Polymer propellers are not recommended for coaxial setups
  • Free of complicated mounting process
  • Turn-key system, perfect compatibility, superb cost performance
  • Fast and convenient

Parameter

  • KV320
  • KV380

Direction

  • CW
  • CCW

Parameter

  • MN505-S KV320 + Alpha 60A LV

Quantity

  • Best Match
  • P22*6.6 Prop - 2PCS/PAIR
  • Includes 1 CW + 1 CCW

Price: $133.5 $140.9

  • Longer Flight Time
  • 100% Balance
  • Higher Loaded Ability
  • Lightweight / High-strength

Product detail

USD200 Consumption Free Shipping by International Express (Excl. Remote Areas and Special Items).

Detail information

Specifications

Technical Drawing

Specification

  • Model: 505-XKV320
  • Lead Cable Length: 630mm
  • Dimension: 113.3*60*115.7mm
  • Arm Set Weight (Incl. Cable): 712g
  • Configuration: 24N28P
  • Shaft Diameter: IN:6mm OUT:4mm
  • Idle Current (24V): 2.5A
  • Rated Voltage (Lipo): 6S
  • Internal Resistance: 38mΩ
  • ESC Recommendation: ALPHA 60A 6S
  • Max. Power (180s): 514W
  • Propeller Recommendation: P22*6.6
  • Model: 505-XKV380
  • Lead Cable Length: 630mm
  • Dimension: 113.3*60*115.7mm
  • Arm Set Weight (Incl. Cable): 715g
  • Configuration: 24N28P
  • Shaft Diameter: IN:6mm OUT:4mm
  • Idle Current (24V): 3.6A
  • Rated Voltage (Lipo): 6S
  • Internal Resistance: 28mΩ
  • ESC Recommendation: ALPHA 60A 6S
  • Max. Power (180s): 468W
  • Propeller Recommendation: P18*6.1

Test Data

Type: X-505 KV320 (Alpha 60A 6S)
Voltage: 6S (24V)
Propeller: P22*6.6

Throttle (%) Current (A) Thrust (g) Torque (N.m) RPM Motor Efficiency (%) Efficiency (gf/W) Operating Temperature (℃)
40% 8.88 1929 0.60 2463 74.50 10.94 88
45% 12.40 2497 0.77 2762 76.38 10.16
50% 16.65 3105 0.95 3047 77.50 9.44
55% 21.64 3757 1.14 3321 78.25 8.84
60% 27.44 4435 1.34 3588 78.75 8.26
65% 33.99 5162 1.54 3838 78.83 7.82
70% 41.16 5860 1.74 4073 78.87 7.39
75% 48.89 6537 1.94 4291 78.51 6.96
80% 57.25 7219 2.14 4496 78.25 6.63
85% 66.39 7909 2.34 4681 77.61 6.34
90% 75.60 8516 2.52 4859 77.13 6.05
95% 84.70 9105 2.69 5012 76.55 5.84
100% 89.04 9348 2.76 5082 76.19 5.72

(Ambient Temperature: 25℃)

Type: X-505 KV380 (Alpha 60A 6S)
Voltage: 6S (24V)
Propeller: P18*6.1

Throttle (%) Current (A) Thrust (g) Torque (N.m) RPM Motor Efficiency (%) Efficiency (gf/W) Operating Temperature (℃)
40% 7.29 1394 0.36 2989 64.87 9.41 83
45% 10.02 1823 0.47 3379 68.25 8.96
50% 13.20 2276 0.58 3751 70.68 8.50
55% 17.02 2767 0.70 4113 72.55 8.02
60% 21.49 3296 0.82 4461 73.51 7.58
65% 26.74 3862 0.96 4815 74.92 7.17
70% 32.37 4424 1.09 5132 75.49 6.80
75% 38.84 5018 1.23 5453 75.90 6.47
80% 45.86 5600 1.38 5756 76.14 6.17
85% 53.85 6229 1.53 6053 76.07 5.88
90% 62.36 6867 1.68 6352 76.16 5.65
95% 71.14 7463 1.83 6609 76.21 5.44
100% 77.96 7899 1.93 6802 75.96 5.30

(Ambient Temperature: 25℃)

Note: Motor temperature is motor surface temperature @100% throttle running 5mins.
(Data above based on bench test are for reference only, comparison with that of other motor types is not recommended.)

Matching Table

Arm Set Compatible Tube Size Motor KV Default ESC Default Propeller Propeller Options Custom ESC
501-X 25mm/30mm (25mm=30mm+adapter) MN501-S KV240 ALPHA 60A 12S V1.2 MF1503 P15*5, FA15.2*5 FLAME 60A 12S
KV300 ALPHA 40A 6S MF2009 P20*6, FA20.2*6.6 ALPHA 60A 12S V1.2, AIR 40A
KV360 MF1806 P18*6.1, FA18.2*5.9
505-X MN505-S KV320 ALPHA 60A 6S MF2211 P22*6.6, FA22.2*7.2 FLAME 60A 12S
KV380 MF1806 P18*6.1, FA18.2*5.9
601-X MN601-S KV170 ALPHA 60A 12S V1.2 MF2009 P20*6, FA20.2*6.6 FLAME 60A 12S
KV320 ALPHA 60A 6S P20*6, FA20.2*6.6
605-X MN605-S KV170 ALPHA 60A 12S V1.2 MF2211 P22*6.6, FA22.2*7.2 FLAME 60A 12S
KV320 ALPHA 60A 6S
701-X MN701-S KV135 ALPHA 80A 12S Round MF2614 P24*7.2-10mm Hole, G24*7.8, FA24.2*7.9 /
705-X MN705-S KV125 ALPHA 80A 12S Round MF2614 G26*8.5, FA26.2*8.5 /
U8Ⅱ-X U8Ⅱ KV85 ALPHA 60A 12S V1.2 MF2815 G28*9.2, FA28.2*9.2 FLAME 60A 12S
KV100
KV150 ALPHA 60A 6S
KV190
6007Ⅱ-X 25mm/28mm 6007Ⅱ KV160 ALPHA 60A 12S V1.2 MF2211 FA22.2*7.2, NS22*6.6, P22*6.6 FLAME 60A 12S
KV320 ALPHA 60A 6S
P60-X 25mm/30mm (25mm=30mm+adapter) P60 KV170 FLAME 60A 12S MF2211 P22*6.6, G22*7.2 /
P80-X 30mm/35mm or 40mm (Notify tube size) P80 KV100/KV120 ALPHA 80A 12S MF3016 P30*10, G30*10.5 FLAME 80A 12S, FLAME 100A 14S
X-501 25mm/30mm (25mm=30mm+adapter) MN501-S KV240 ALPHA 60A 12S V1.2 P15*5 / FLAME 60A 12S
KV300 ALPHA 40A 6S P20*6 / ALPHA 60A 6S, AIR 40A
KV360 P18*6.1 /
X-505 MN505-S KV320 ALPHA 60A 6S P22*6.6 / FLAME 60A 12S
KV380 P18*6.1 /
X-601 MN601-S KV170 ALPHA 60A 12S V1.2 P20*6 / FLAME 60A 12S
KV320 ALPHA 60A 6S /
X-605 MN605-S KV170 ALPHA 60A 12S V1.2 P22*6.6 / FLAME 60A 12S
KV320 ALPHA 60A 6S /
X-U8Ⅱ U8Ⅱ KV85 ALPHA 60A 12S V1.2 G28*9.2 / FLAME 60A 12S
KV100 /
KV150 ALPHA 60A 6S /
KV190 /
X-701 30mm/35mm (30mm=35mm+adapter) MN701-S KV135 ALPHA 80A 12S Round P24*7.2-10mm Hole G24*7.8 /
X-705 MN705-S KV125 ALPHA 80A 12S Round G26*8.5 /

* NOTE: order qty should be an EVEN number.
