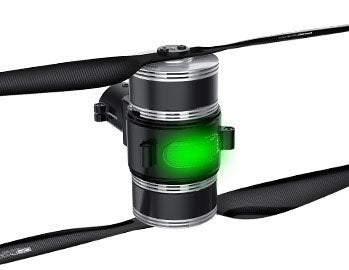

X-501 Combo Pack Coaxial Type 6S/12S (Integrated Propulsion System) UAV Motor

• Polymer propellers are not recommended for coaxial setups
• Free of complicated mounting process
• Turn-key system, perfect compatibility, superb cost performance
• Fast and convenient

Parameter:

• KV240
• KV300
• KV360

Direction:

• CW
• CCW

Parameter:

MN501-S KV300+Alpha 40A LV

Quantity:

Best Match
P20*6 Prop-2PCS/PAIR

Includes 1 CW + 1 CCW

• Longer Flight Time
• 100% Balance
• Higher Loaded Ability
• Lightweight / High-strength

USD200 Consumption Free Shipping by International Express (Excl. Remote Areas and Special Items).

Specifications

Specification

• Model: X-501KV240
  Lead Cable Length: 630mm
  Dimension: 113.3*60*104.9mm
  Arm Set Weight (Incl. Cable): 630g
  Configuration: 24N28P
  Shaft Diameter: IN:6mm OUT:4mm
  Idle Current (24V): 1.1A
  Rated Voltage (Lipo): 6-12S
  Internal Resistance: 85mΩ
  ESC Recommendation: ALPHA 60A 12S V1.2
  Max. Power (180s): 368W
  Propeller Recommendation: P15*5
• Model: X-501KV300
  Lead Cable Length: 630mm
  Dimension: 113.3*60*104.9mm
  Arm Set Weight (Incl. Cable): 560g
  Configuration: 24N28P
  Shaft Diameter: IN:6mm OUT:4mm
  Idle Current (24V): 1.2A
  Rated Voltage (Lipo): 6S
  Internal Resistance: 63mΩ
  ESC Recommendation: ALPHA 40A 6S
  Max. Power (180s): 218W
  Propeller Recommendation: P20*6
• Model: 501-XKV360
  Lead Cable Length: 630mm
  Dimension: 122.6*69*60.2mm
  Arm Set Weight (Incl. Cable): 570g
  Configuration: 24N28P
  Shaft Diameter: IN:6mm OUT:4mm
  Idle Current (24V): 1.7A
  Rated Voltage (Lipo): 6S
  Internal Resistance: 45mΩ
  ESC Recommendation: ALPHA 40A 6S
  Max. Power (180s): 322W
  Propeller Recommendation: P18*6.1

Test Data

X-501 KV240 (Alpha 60A 12S)
Voltage: 12S (48V), Propeller: P15*5
Throttle: 40% - Current: 3.63A, Thrust: 1264g, Torque: 0.28N.m, RPM: 4032, Motor Efficiency: 66.86%, Efficiency: 5.93gf/W, Operating Temp: 78℃ (Ambient: 25℃)
...
Throttle: 100% - Current: 39.04A, Thrust: 7451g, Torque: 1.58N.m, RPM: 9246, Motor Efficiency: 83.59%, Efficiency: 3.39gf/W

X-501-X KV300 (Alpha 40A 6S)
Voltage: 6S (24V), Propeller: P20*6
Throttle: 40% - Current: 5.63A, Thrust: 1303g, Torque: 0.36N.m, RPM: 2558, Motor Efficiency: 72.63%, Efficiency: 11.46gf/W, Operating Temp: 86℃ (Ambient: 25℃)
...
Throttle: 100% - Current: 50.18A, Thrust: 6288g, Torque: 1.69N.m, RPM: 5100, Motor Efficiency: 79.62%, Efficiency: 6.58gf/W

X-501-X KV360 (Alpha 40A 6S)
Voltage: 6S (24V), Propeller: P18*6.1
Throttle: 40% - Current: 5.94A, Thrust: 1286g, Torque: 0.34N.m, RPM: 2882.55, Motor Efficiency: 69.73%, Efficiency: 10.46gf/W, Operating Temp: 86℃ (Ambient: 25℃)
...
Throttle: 100% - Current: 61.80A, Thrust: 6932g, Torque: 1.71N.m, RPM: 6258.69, Motor Efficiency: 78.06%, Efficiency: 5.68gf/W

Note: Motor temperature is motor surface temperature @100% throttle running 5mins.
(Data above based on bench test are for reference only, comparison with that of other motor types is not recommended.)

Matching Table

Arm Set Compatible Tube Size | Motor KV | Default ESC | Default Propeller | Propeller Options | Custom ESC
501-X 25mm/30mm (25mm=30mm+adapter):
- MN501-S KV240: ALPHA 60A 12S V1.2, MF1503 P15*5, FA15.2*5, FLAME 60A 12S
- KV300: ALPHA 40A 6S, MF2009 P20*6, FA20.2*6.6, ALPHA 60A 12S V1.2, AIR 40A
- KV360: MF1806 P18*6.1, FA18.2*5.9
505-X:
- MN505-S KV320: ALPHA 60A 6S, MF2211 P22*6.6, FA22.2*7.2, FLAME 60A 12S
- KV380: MF1806 P18*6.1, FA18.2*5.9
601-X:
- MN601-S KV170: ALPHA 60A 12S V1.2, MF2009 P20*6, FA20.2*6.6, FLAME 60A 12S
- KV320: ALPHA 60A 6S, P20*6, FA20.2*6.6
605-X:
- MN605-S KV170: ALPHA 60A 12S V1.2, MF2211 P22*6.6, FA22.2*7.2, FLAME 60A 12S
- KV320: ALPHA 60A 6S
701-X:
- MN701-S KV135: ALPHA 80A 12S, Round MF2614 P24*7.2-10mm Hole, G24*7.8, FA24.2*7.9
705-X:
- MN705-S KV125: ALPHA 80A 12S, Round MF2614 G26*8.5, FA26.2*8.5
U8Ⅱ-X, U8 Lite-X, XU8-X, U8Ⅱ, U8 Lite, XU8:
- KV85: ALPHA 60A 12S V1.2, MF2815 G28*9.2, FA28.2*9.2, FLAME 60A 12S
- KV100
- KV150: ALPHA 60A 6S
- KV190
6007Ⅱ-X 25mm/28mm:
- 6007Ⅱ KV160: ALPHA 60A 12S V1.2, MF2211 FA22.2*7.2, NS22*6.6, P22*6.6, FLAME 60A 12S
- KV320: ALPHA 60A 6S
P60-X 25mm/30mm (25mm=30mm+adapter):
- P60 KV170: FLAME 60A 12S, MF2211 P22*6.6, G22*7.2
P80-X 30mm/35mm or 40mm (Notify tube size):
- P80 KV100/KV120: ALPHA 80A 12S, MF3016 P30*10, G30*10.5, FLAME 80A 12S, FLAME 100A 14S
X-501 25mm/30mm (25mm=30mm+adapter):
- MN501-S KV240: ALPHA 60A 12S V1.2, P15*5, FLAME 60A 12S
- KV300: ALPHA 40A 6S, P20*6, ALPHA 60A 6S, AIR 40A
- KV360: P18*6.1
X-505:
- MN505-S KV320: ALPHA 60A 6S, P22*6.6, FLAME 60A 12S
- KV380: P18*6.1
X-601:
- MN601-S KV170: ALPHA 60A 12S V1.2, P20*6, FLAME 60A 12S
- KV320: ALPHA 60A 6S
X-605:
- MN605-S KV170: ALPHA 60A 12S V1.2, P22*6.6, FLAME 60A 12S
- KV320: ALPHA 60A 6S
X-U8Ⅱ, X-U8 Lite, U8Ⅱ, U8 Lite:
- KV85: ALPHA 60A 12S V1.2, G28*9.2, FLAME 60A 12S
- KV100
- KV150: ALPHA 60A 6S
- KV190
X-701 30mm/35mm (30mm=35mm+adapter):
- MN701-S KV135: ALPHA 80A 12S, Round P24*7.2-10mm Hole G24*7.8
X-705:
- MN705-S KV125: ALPHA 80A 12S, Round G26*8.5

* NOTE: order qty should be an EVEN number.
