V807-KV170

T-Motor

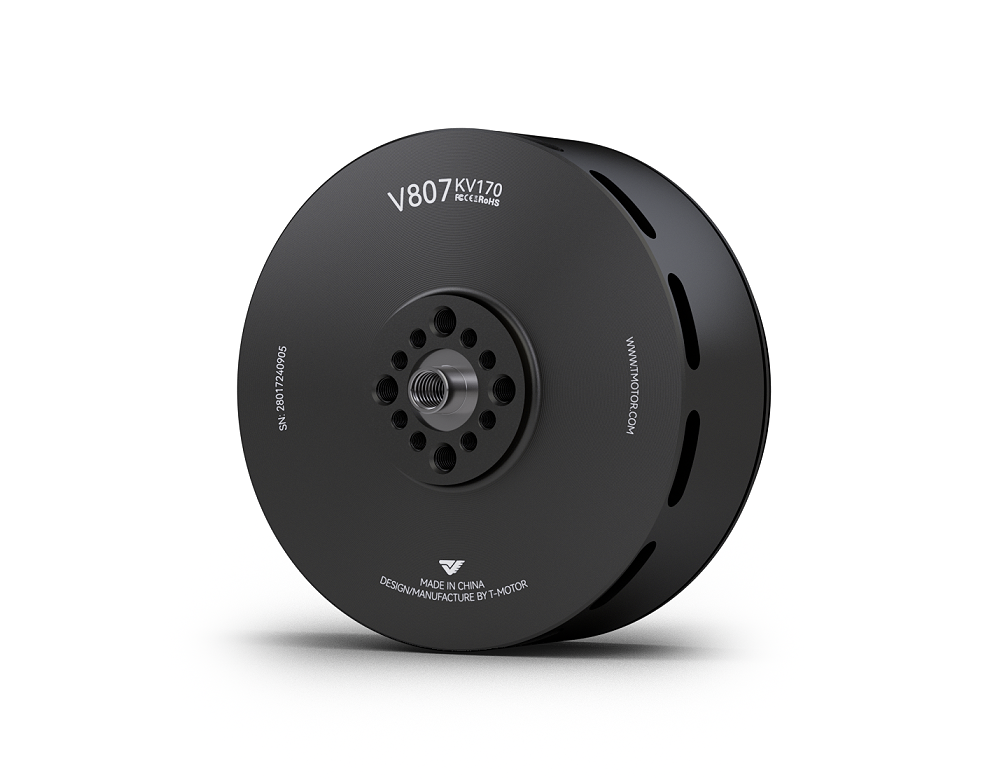

V807 KV170 12S Vtol Brushless Drone Motor

V807 KV170 12S Vtol Brushless Drone Motor

$299.90 USD
$299.90 USD
Sale Sold out

V807 KV170 12S VTOL Brushless Drone Motor

Specifications

  • Model No./ Kv: V807 KV170
  • Magnet Temperature Resistance Grade: Class E 150℃
  • Motor Size (mm): Φ88.5*46.4
  • Lead (mm): 12AWG*1000
  • Stator Technology: Anti-rust treatment; 180°C high temperature-resisting coatings
  • Enamelled Wires Temperature Resistance Grade: Class C 220℃
  • Configuration: 24N28P
  • Coil Withdraw Voltage: 500V/5s
  • Shaft Diameter (mm): IN:12 OUT:8
  • Rotor Dynamic Balance Standard: ≤5mg
  • Bearing: Imported 6901ZZ
  • IP: IP35
  • KV Value: KV170
  • Battery (lipo)/Voltage Recommendation: 12S (4.2V/Sl) / 42-52V
  • Idle Current (18V): 3.0A
  • ESC Recommendation: FLAME 180A 12S V2.0
  • Peak Current (A): 150A / Continuous 180s
  • Propeller Recommendation: G27*8.8 / G28*9.2 / G29*9.5
  • Max. Power (W): 6800W / Continuous 180s
  • Motor Weight (g): 650g (800g Weight incl. cables)
  • Internal Resistance (mΩ): 40
  • Package Weight (g): 1000g

Test Data

Item No. Prop Throttle Voltage (V) Thrust (g) Torque (N*m) Current (A) RPM Input Power (W) Efficiency (g/W) Operating Temperature (℃)
V807 KV170 G27*8.8 40% 47.76 4047 1.39 10.41 2732 497.06 8.14 107℃
45% 47.69 5059 1.70 13.75 3021 655.50 7.72
50% 47.57 6445 2.17 19.81 3383 942.21 6.84
55% 47.42 7792 2.56 26.23 3699 1243.82 6.26
60% 47.30 9125 2.94 32.61 3993 1542.46 5.92
65% 47.06 10968 3.47 43.88 4362 2065.07 5.31
70% 46.90 12248 3.84 52.04 4602 2440.62 5.02
75% 46.69 13716 4.28 62.32 4867 2909.41 4.71
80% 46.49 14969 4.67 71.51 5077 3324.48 4.50
90% 46.04 17604 5.45 92.79 5445 4271.76 4.12
100% 45.52 19849 6.12 116.62 5785 5308.27 3.74
V807 KV170 G28*9.2 40% 47.73 4372 1.56 11.04 2698 527.22 8.29 128℃
45% 47.65 5443 1.88 14.75 2988 702.90 7.74
50% 47.52 6915 2.37 21.39 3346 1016.23 6.81
55% 47.37 8307 2.77 28.13 3659 1332.57 6.24
60% 47.25 9702 3.17 34.67 3943 1637.97 5.92
65% 47.09 11073 3.57 42.37 4199 1995.01 5.55
70% 46.82 12865 4.11 55.21 4538 2584.99 4.98
75% 46.61 14442 4.56 65.73 4784 3063.87 4.71
80% 46.40 15717 4.95 75.55 4983 3505.38 4.48
90% 45.93 18275 5.74 97.82 5345 4492.59 4.07
100% 45.34 20721 6.46 124.56 5649 5647.55 3.67
V807 KV170 G29*9.5 40% 47.69 5070 1.87 12.97 2620 618.39 8.20 HOT
45% 47.59 6276 2.24 17.37 2897 826.77 7.59
50% 47.42 7916 2.84 25.28 3240 1199.04 6.60
55% 47.26 9558 3.34 33.51 3554 1584.03 6.03
60% 47.08 11083 3.82 42.40 3819 1996.30 5.55
65% 46.93 12433 4.23 49.99 4042 2346.17 5.30
70% 46.62 14312 4.83 65.04 4338 3032.08 4.72
75% 46.33 15888 5.31 78.22 4552 3624.20 4.38
80% 46.09 17138 5.71 89.68 4727 4133.43 4.15
90% 45.54 19498 6.46 115.33 5024 5251.58 3.71
100% 44.71 20997 6.93 151.70 5200 6782.02 3.10

Notes:
Motor temperature is the motor surface temperature after running at 80% for 10 minutes.
(Based on T-MOTOR test bench(es), all data are for reference only. T-MOTOR reserves the right of final interpretation.)

Packing List

Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact your supplier.
