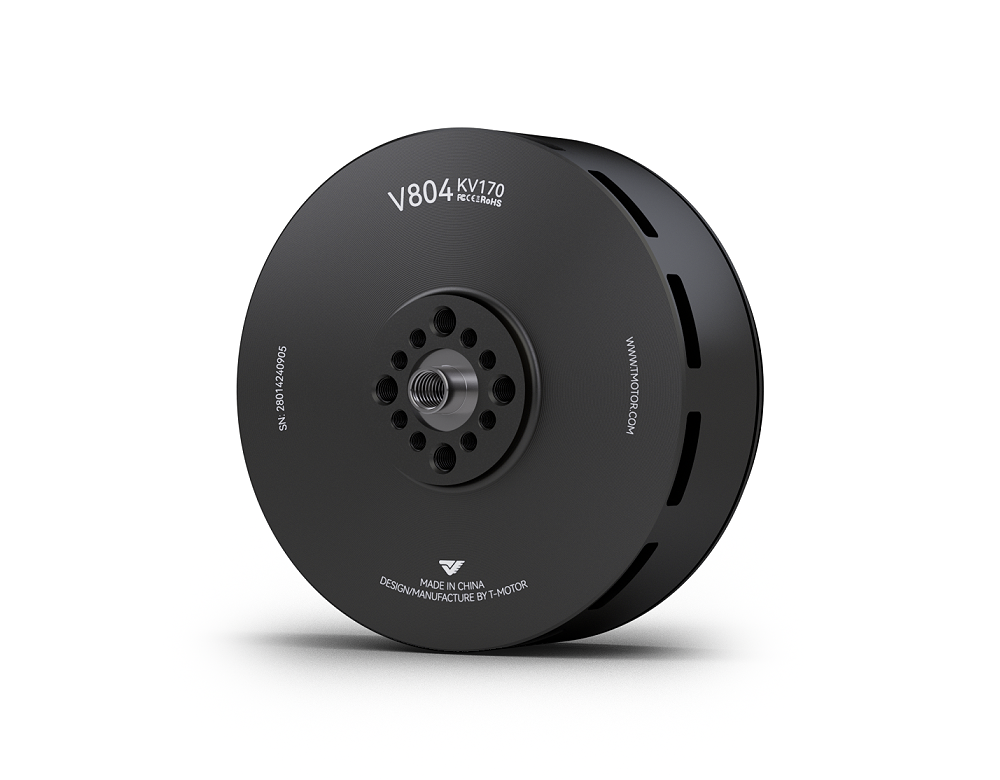

V804 KV170 12S Brushless Motor for Vtol Drone

V804 KV170 12S Brushless Motor for Vtol Drone

$289.90 USD
$289.90 USD
Sale Sold out

V804 KV170 12S Brushless Motor for VTOL Drone

Specifications

  • Model No./ Kv: V804 KV170
  • Magnet Temperature Resistance Grade: Class E 150℃
  • Motor Size (mm): Φ88.5*43.4
  • Lead (mm): 12AWG*1000
  • Stator Technology: Anti-rust treatment; 180°C high temperature-resisting coatings
  • Enamelled Wires Temperature Resistance Grade: Class C 220℃
  • Configuration: 24N28P
  • Coil Withdraw Voltage: 500V/5s
  • Shaft Diameter (mm): IN:12 OUT:8
  • Rotor Dynamic Balance Standard: ≤5mg
  • Bearing: Imported 6901ZZ
  • IP: IP35
  • KV Value: KV170
  • Battery (lipo)/Voltage Recommendation: 12S (4.2V/Sl) / 42-52V
  • Idle Current (18V): 2.7A
  • ESC Recommendation: FLAME 180A 12S V2.0
  • Peak Current (A): 115A / Continuous 180s
  • Configuration: G26*8.5 / G27*8.8 / G28*9.2
  • Max. Power (W): 5200W / Continuous 180s
  • Motor Weight (g): 560g (710g Weight incl. cables)
  • Internal Resistance (mΩ): 33
  • Package Weight (g): 890g

Test Data

Item No. Prop Throttle Voltage (V) Thrust (g) Torque (N*m) Current (A) RPM Input Power (W) Efficiency (g/W) Operating Temperature (℃)
V804 KV170 G26*8.5 40% 47.65 3369.87 1.01 8.39 2781 399.54 8.43 107℃
45% 47.58 4165.79 1.24 11.18 3082 531.83 7.83
50% 47.49 5211.17 1.55 15.58 3441 739.95 7.04
55% 47.38 6252.56 1.85 20.45 3773 968.79 6.45
60% 47.29 7303.10 2.16 25.66 4066 1213.43 6.02
65% 47.12 8648.58 2.57 33.94 4439 1599.33 5.41
70% 47.00 9816.86 2.90 40.59 4699 1907.78 5.15
75% 46.82 10991.48 3.26 48.58 4957 2274.76 4.83
80% 46.69 11987.70 3.57 55.69 5188 2600.20 4.61
90% 46.37 14023.32 4.18 72.01 5583 3338.89 4.20
100% 46.00 16015.50 4.80 90.16 5928 4147.46 3.86
V804 KV170 G27*8.8 40% 47.63 3853.06 1.21 9.76 2733 464.80 8.29 112℃
45% 47.55 4773.38 1.49 12.97 3023 616.58 7.74
50% 47.46 5951.92 1.85 18.39 3366 872.92 6.82
55% 47.30 7193.36 2.23 24.39 3683 1153.88 6.23
60% 47.19 8385.79 2.59 30.39 3964 1434.03 5.85
65% 47.07 9515.57 2.95 37.07 4213 1744.98 5.45
70% 46.86 11051.81 3.43 47.89 4532 2244.26 4.92
75% 46.70 12222.21 3.79 56.23 4753 2625.68 4.66
80% 46.51 13294.33 4.13 64.97 4948 3022.21 4.40
90% 46.11 15476.38 4.80 84.33 5261 3888.62 3.98
100% 45.68 17271.50 5.39 105.89 5546 4837.44 3.57
V804 KV170 G28*9.2 40% 47.62 4152.97 1.29 10.63 2675 506.07 8.21 HOT
45% 47.54 5118.47 1.58 14.14 2961 672.04 7.62
50% 47.39 6342.50 1.96 20.07 3298 951.19 6.67
55% 47.28 7635.81 2.35 26.64 3610 1259.78 6.06
60% 47.14 8907.64 2.73 33.45 3881 1576.89 5.65
65% 47.02 10052.39 3.09 39.85 4104 1873.54 5.37
70% 46.74 11746.82 3.59 52.73 4418 2464.81 4.77
75% 46.59 12851.29 3.93 61.57 4624 2868.36 4.48
80% 46.41 13819.99 4.25 70.19 4811 3257.09 4.24
90% 46.01 15862.38 4.85 90.55 5122 4166.17 3.81
100% 45.53 17357.91 5.35 113.72 5380 5177.43 3.35

Notes:
Motor temperature is the motor surface temperature after running at 80% for 10 mins.
(Based on T-MOTOR test bench(es), all data are for reference only. T-MOTOR reserves the right of final interpretation.)

Packing List

Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact your supplier.
