SKU:V605-KV210
T-Motor

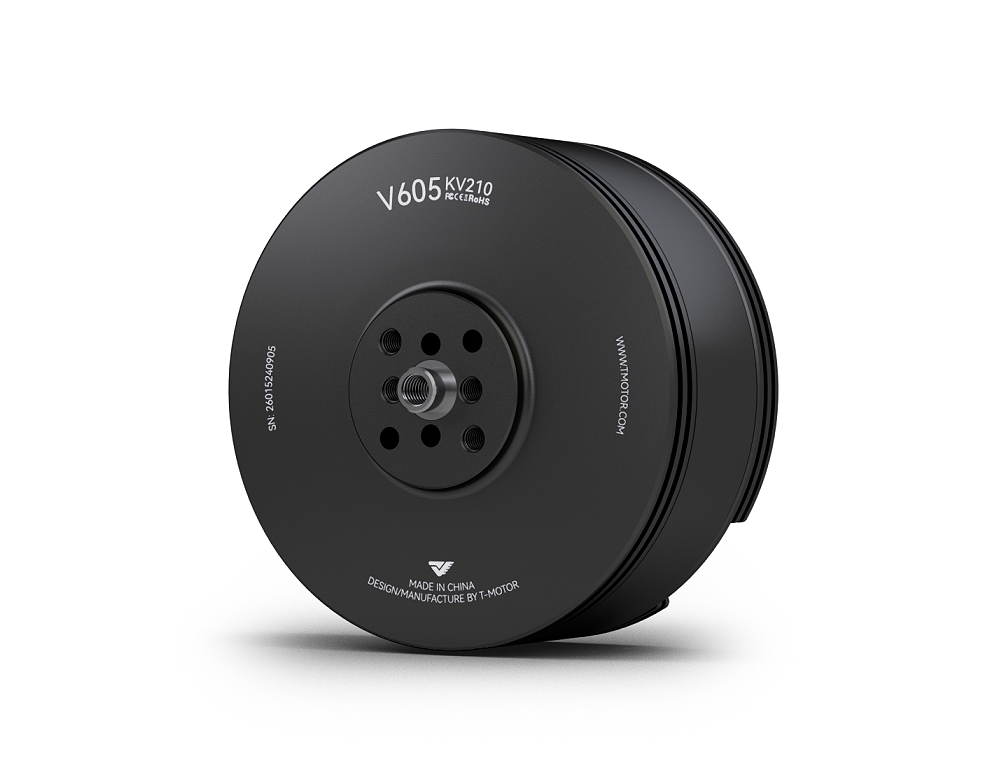

V605 KV210 12S Vtol Brushless Drone Motor
V605 KV210 12S Vtol Brushless Drone Motor
Regular price
$149.99 USD
Regular price
Sale price
$149.99 USD
Quantity
Couldn't load pickup availability
V605 KV210 12S Vtol Brushless Drone Motor
CAD: $149.99
Specifications
- Model No./ Kv: V605 KV210
- Magnet Temperature Resistance Grade: Class E 150℃
- Motor Size (mm): Φ68.8*39.9
- Lead (mm): 14AWG*600
- Stator Technology: Anti-rust treatment; 180°C high temperature-resisting coatings
- Enamelled Wires Temperature Resistance Grade: Class C 220℃
- Configuration: 24N28P
- Coil Withdraw Voltage: 500V/5s
- Shaft Diameter (mm): IN:6 OUT:6
- Rotor Dynamic Balance Standard: ≤5mg
- Bearing: Imported 626ZZ
- IP: IP45
- KV Value: KV210
- Battery (lipo)/Voltage Recommendation: 12S (4.2V/Sl) / 42-52V
- Idle Current (18V): 1.6A
- ESC Recommendation: FLAME 80A 12S V2.0
- Peak Current (A): 70A / Continuous 180s
- Propeller Recommendation: V22*7.4
- Max. Power (W): 3200W / Continuous 180s
- Motor Weight (g): 340g (385g Weight incl. cables)
- Internal Resistance (mΩ): 48
- Package Weight (g): 550g
Test Data
- Item No.: V605 KV210
- Prop: T-MOTOR V22*7.4
| Throttle | Voltage (V) | Thrust (g) | Torque (N*m) | Current (A) | RPM | Input Power (W) | Efficiency (g/W) | Operating Temperature (℃) |
|---|---|---|---|---|---|---|---|---|
| 40% | 47.90 | 2898 | 0.73 | 7.21 | 3444 | 345.38 | 8.39 | 98℃ |
| 42% | 47.88 | 3200 | 0.80 | 8.20 | 3592 | 392.66 | 8.15 | |
| 44% | 47.86 | 3464 | 0.86 | 9.09 | 3762 | 435.10 | 7.96 | |
| 46% | 47.83 | 3722 | 0.93 | 10.29 | 3908 | 492.24 | 7.56 | |
| 48% | 47.80 | 4059 | 1.02 | 11.56 | 4063 | 552.31 | 7.35 | |
| 50% | 47.77 | 4385 | 1.09 | 12.94 | 4226 | 618.17 | 7.09 | |
| 52% | 47.75 | 4663 | 1.16 | 14.12 | 4352 | 674.42 | 6.91 | |
| 54% | 47.72 | 4995 | 1.24 | 15.46 | 4488 | 737.53 | 6.77 | |
| 56% | 47.70 | 5266 | 1.31 | 16.76 | 4618 | 799.58 | 6.59 | |
| 58% | 47.67 | 5525 | 1.36 | 18.00 | 4734 | 858.07 | 6.44 | |
| 60% | 47.63 | 5788 | 1.44 | 19.46 | 4859 | 927.06 | 6.24 | |
| 62% | 47.60 | 6153 | 1.52 | 21.06 | 4980 | 1002.58 | 6.14 | |
| 64% | 47.58 | 6455 | 1.60 | 22.61 | 5107 | 1075.70 | 6.00 | |
| 66% | 47.53 | 6771 | 1.68 | 24.51 | 5241 | 1164.96 | 5.81 | |
| 68% | 47.49 | 7049 | 1.75 | 26.19 | 5363 | 1243.96 | 5.67 | |
| 70% | 47.45 | 7383 | 1.84 | 28.11 | 5487 | 1334.04 | 5.53 | |
| 80% | 47.23 | 9108 | 2.28 | 38.69 | 6025 | 1827.49 | 4.98 | |
| 90% | 46.95 | 10917 | 2.80 | 52.16 | 6561 | 2448.72 | 4.46 | |
| 100% | 46.60 | 12761 | 3.26 | 68.30 | 7036 | 3182.62 | 4.01 |
Notes: Motor temperature is the motor surface temperature after running at 80% for 10 mins. (Based on T-MOTOR test bench(es), all data are for reference only. T-MOTOR reserves the right of final interpretation.)
Packing List
Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please refer to the product documentation.
