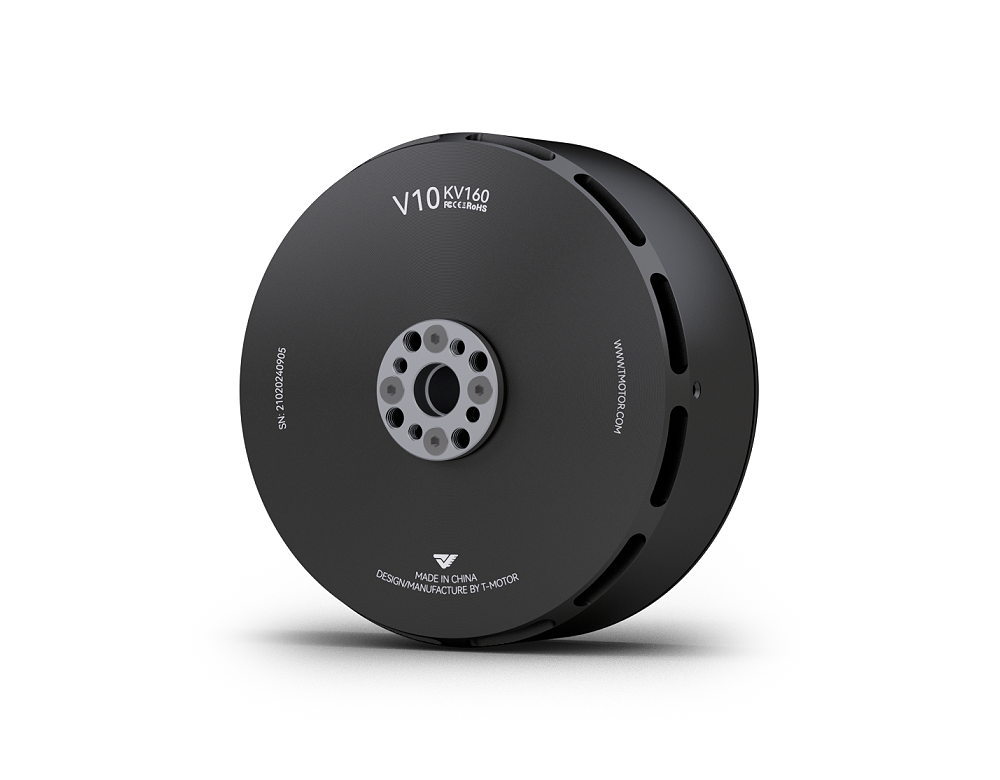

V10 KV160 12S Brushless Motor for Large Vtol

V10 KV160 12S Brushless Motor for Large VTOL

Specifications

• Model: V10 KV160
• KV: 160
• Configuration: 36N42P
• No-load Current (10V): 2.1A
• Internal Resistance: 0.021Ω
• Max Continuous Current: 120A
• Max Continuous Power: 5200W
• Max Peak Current (180s): 150A
• Max Peak Power (180s): 6500W
• Rated Voltage (Lipo): 12S (44.4V)
• Motor Weight: 980g
• Motor Diameter: 87mm
• Motor Length: 62mm
• Shaft Diameter: 10mm
• Mounting Holes: 4x M5, 30mm circle
• Recommended ESC: 200A HV
• Recommended Propeller: 28-32 inch
• Application: Large VTOL, UAV, Agricultural Drone, Industrial Drone

Features

• High efficiency and power output for large VTOL and UAV applications
• Robust construction for industrial and agricultural drone use
• Precision-balanced rotor for smooth operation
• High-quality bearings for extended lifespan
• Compatible with 12S LiPo battery systems
• Suitable for 28-32 inch propellers
• Designed for high reliability in demanding environments

Certifications

• CE Certified
• RoHS Compliant

Warnings

• Ensure proper installation and secure mounting before operation
• Use only with recommended ESC and propeller sizes
• Do not exceed specified voltage and current ratings
• Always follow safety guidelines for high-power brushless motors

Shipping Information

• Free shipping by international express for orders over USD200 (excluding remote areas and special items)

Product Notes

• All technical specifications are subject to change without notice
• Actual product appearance may vary from images shown
• For use by experienced operators only

Compatibility Information

• Compatible with most large VTOL and UAV platforms requiring 12S power systems and 28-32 inch propellers

Dimensions

• Motor Diameter: 87mm
• Motor Length: 62mm
• Shaft Diameter: 10mm
• Mounting Holes: 4x M5, 30mm circle

Ratings

• Max Continuous Power: 5200W
• Max Peak Power (180s): 6500W
• Max Continuous Current: 120A
• Max Peak Current (180s): 150A

Technical Details

• Configuration: 36N42P
• No-load Current (10V): 2.1A
• Internal Resistance: 0.021Ω
