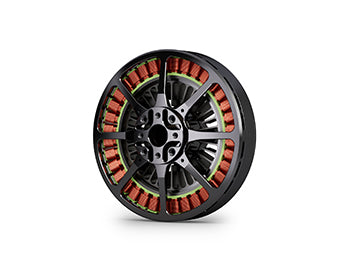

U8 Lite L Efficiency Multirotor UAV Motor KV110

U8 Lite L Efficiency Multirotor UAV Motor KV110

• 3rd generation propellers + FOC ESC: Efficient combination
• High thrust/weight ratio
• Excessive Power

Parameter:

• KV95
• KV110

USD200 Consumption Free Shipping by International Express (Excl. Remote Areas and Special Items).

About T-MOTOR U8 Lite L Efficiency Multirotor UAV Motor KV110

T-MOTOR U8 Lite L KV110 delivers exceptional thrust up to 11.2kg with an ultra-light design for extended flight durations. Built with imported custom bearings, it features a redesigned structure tested for axial and radial stresses, ensuring a lifespan of 1,000 operational hours and up to 1,500 flights. Its advanced magnetic circuit matches the efficiency of the U8 Lite, offering unmatched power and reliability.

U8 Lite L KV110 Highlights:

• Max. thrust: 11.2kg
• MTBF: About 1000 hours
• Features: Industrial Grade, Waterproof, dustproof, low noise, large bearings
• Industrial grade, dust proof, water proof.

Application Areas:

• Surveillance
• Cruise
• Security and protection
• Surveying and mapping

Packing List Includes:

• 1x T-MOTOR U8 Lite L Motor KV110
• 1x Hardware pack

Matching Guide:

• T-MOTOR G30*10.5 Prop

"U Efficiency" motors (from U-series) are aimed for high end UAVs requiring long endurance. This kind of UAVs are usually for surveillance, cruise, security and protection, surveying and mapping.

Lightweight design allows you to fly longer. Industrial-grade dustproof and waterproof and anti-aging, greatly extends the working life of the motor. Curved magnets with precise tolerance control and rational magnet space for optimal motor magnetic circuit help improve motor performance. The motor uses imported customized bearings to extend the service life of the motor and ensure smooth flight and longer flight time.

Detail information

Specifications

KV95

• Rated Voltage (Lipo): 12S (4.2V/pc) / 48-52V
• Motor Weight (Incl. Cable): 280g
• Motor Dimensions: Φ87.1×28.05mm
• Idle Current (18V): 0.7A
• Shaft Diameter: 15mm
• Internal Resistance: 146mΩ
• Configuration: 36N42P
• Peak Current (180s): 38A
• Cable Length: 90mm
• Max Power (180S): 1790W
• Packing Size: 130*111*50.6mm

KV110

• Rated Voltage (Lipo): 12S (4.2V/pc) / 48-52V
• Motor Weight (Incl. Cable): 282g
• Motor Dimensions: Φ87.1×28.05mm
• Idle Current (18V): 0.9A
• Shaft Diameter: 15mm
• Internal Resistance: 105mΩ
• Configuration: 36N42P
• Peak Current (180s): 45.8A
• Cable Length: 90mm
• Max Power (180S): 2140W
• Packing Size: 130*111*50.6mm

Test Data

Type | Propeller | Throttle | Voltage (V) | Thrust (g) | Torque (N*m) | Current (A) | RPM | Power (W) | Efficiency (g/W) | Operating Temperature (℃)

U8lite L-KV95
G29*9.5: 40% 48V 1725g 0.59N*m 2.60A 1579RPM 124W 13.89g/W 50℃
G29*9.5: 45% 48V 2159g 0.73N*m 3.56A 1761RPM 170W 12.69g/W
G29*9.5: 50% 48V 2604g 0.87N*m 4.66A 1929RPM 222W 11.71g/W
G29*9.5: 55% 48V 3092g 1.03N*m 5.95A 2095RPM 284W 10.90g/W
G29*9.5: 60% 48V 3553g 1.18N*m 7.22A 2247RPM 345W 10.31g/W
G29*9.5: 65% 48V 4100g 1.36N*m 8.87A 2414RPM 423W 9.70g/W
G29*9.5: 70% 48V 4573g 1.52N*m 10.53A 2548RPM 501W 9.12g/W
G29*9.5: 75% 48V 5214g 1.72N*m 12.74A 2705RPM 606W 8.61g/W
G29*9.5: 80% 48V 5939g 1.95N*m 15.40A 2887RPM 732W 8.12g/W
G29*9.5: 90% 47V 7191g 2.34N*m 20.62A 3157RPM 977W 7.36g/W
G29*9.5: 100% 47V 8521g 2.78N*m 27.00A 3439RPM 1276W 6.68g/W
G30*10.5: 40% 48V 1998g 0.70N*m 3.04A 1561RPM 146W 13.73g/W 68℃
... (additional data omitted for brevity)

U8lite L-KV110
G28*9.2: 40% 48V 2022g 0.65N*m 3.49A 1877RPM 167W 12.14g/W 54℃
G28*9.2: 45% 48V 2515g 0.80N*m 4.69A 2079RPM 224W 11.23g/W
G28*9.2: 50% 48V 3075g 0.96N*m 6.13A 2273RPM 292W 10.52g/W
G28*9.2: 55% 48V 3550g 1.12N*m 7.69A 2451RPM 366W 9.69g/W
G28*9.2: 60% 48V 4007g 1.27N*m 9.12A 2637RPM 434W 9.22g/W
G28*9.2: 65% 48V 4543g 1.43N*m 11.30A 2828RPM 538W 8.45g/W
G28*9.2: 70% 48V 5217g 1.63N*m 13.53A 3018RPM 643W 8.11g/W
G28*9.2: 75% 47V 6083g 1.90N*m 16.98A 3230RPM 806W 7.55g/W
G28*9.2: 80% 47V 6832g 2.13N*m 19.99A 3399RPM 947W 7.21g/W
G28*9.2: 90% 47V 8273g 2.55N*m 26.57A 3716RPM 1256W 6.59g/W
G28*9.2: 100% 47V 9847g 3.07N*m 35.55A 4063RPM 1674W 5.88g/W
... (additional data omitted for brevity)

Note: Motor temperature is motor surface temperature at 100% throttle running 10 mins.
(Data above based on bench test are for reference only, comparison with that of other motor types is not recommended.)
