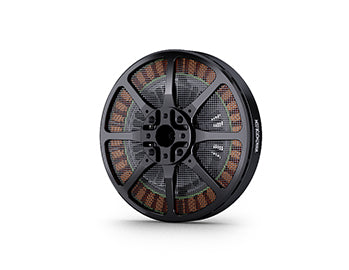

U8 Lite Efficiency Type Multirotor UAV Motor KV100

U8 Lite Efficiency Type Multirotor UAV Motor KV100

• Flight time 5% longer
• Max. Thrust 7.3kg
• Motor service life: 1500 flights (40mins/flight)
• ATA01123 prop adapter for P22inch prop

Parameter:

• KV85
• KV100
• KV150
• KV190

USD200 Consumption Free Shipping by International Express (Excl. Remote Areas and Special Items).

About T-MOTOR U8 Lite Power Efficiency Multirotor UAV Motor KV100

T-Motor U8 Lite KV100 Standard Version features an ultra-light design for extended flight times. With precise mesh protection, a self-cooling system, and heat-resistant wires, it ensures top efficiency and performance. Its curved magnet design unlocks maximum potential, making it a reliable high-performance brushless motor.

U8 Lite KV100 Highlights:

• Max. thrust: 7.3kg
• MTBF: About 1000 hours
• Features: Industrial Grade, Waterproof, dustproof, low noise, large bearings
• Industrial grade, dust proof, water proof.

Application Areas:

• Surveillance
• Cruise
• Security and protection
• Surveying and mapping

Packing List Includes:

• 1x T-MOTOR U8 Lite Motor KV100
• 1x Hardware pack

Matching Guide:

• T-MOTOR G28*9.2 prop
• Alpha 60A 12s ESC

"U Efficiency" motors (from U-series) are aimed for high end UAVs requiring long endurance. This kind of UAVs are usually for surveillance, cruise, security and protection, surveying and mapping.

Lightweight design allows you to fly longer. Industrial-grade dustproof and waterproof and anti-aging, greatly extends the working life of the motor. Curved magnets with precise tolerance control and rational magnet space for optimal motor magnetic circuit help improve motor performance. The motor uses imported customized bearings to extend the service life of the motor and ensure smooth flight and longer flight time.

Detail Information

Specifications

• Diameter: 87.1mm
• Configuration: 36N42P
• Height: 27.05mm
• Lead Spec: 90mm
• Shaft Diameter: 15mm
• Packing Size: 130*111*50.6mm

KV85

• Rated Voltage (Lipo): 12S
• Motor Weight (Incl. Cable): 243g
• Propeller Recommendation: 28-29"
• Idle Current (18V): 0.5A
• Quadcopter (28CF): 10kg
• Internal Resistance: 225±5mΩ
• Hexacopter (28CF): 15kg
• Peak Current (180s): 19.1A
• Octocopter (28CF): 20kg
• Max. Power (180s): 916.8W

KV100

• Rated Voltage (Lipo): 12S
• Motor Weight (Incl. Cable): 238g
• Propeller Recommendation: 27-28"
• Idle Current (18V): 0.7A
• Quadcopter (28CF): 14kg
• Internal Resistance: 170±5mΩ
• Hexacopter (28CF): 21kg
• Peak Current (180s): 29.3A
• Octocopter (28CF): 28kg
• Max. Power (180s): 1406.4W

KV150

• Rated Voltage (Lipo): 6S / 12S
• Motor Weight (Incl. Cable): 239g
• Propeller Recommendation: 28-30" / 22"
• Idle Current (18V): 1A
• Quadcopter (28CF): 8kg
• Internal Resistance: 85±5mΩ
• Hexacopter (28CF): 12kg
• Peak Current (180s): 29.7A / 26.5A
• Octocopter (28CF): 16kg
• Max. Power (180s): 712.8W / 1272W

KV190

• Rated Voltage (Lipo): 6S
• Motor Weight (Incl. Cable): 243g
• Propeller Recommendation: 28-29"
• Idle Current (18V): 1.3A
• Quadcopter (28CF): 12kg
• Internal Resistance: 48±3mΩ
• Hexacopter (28CF): 18kg
• Peak Current (180s): 43.7A
• Octocopter (28CF): 24kg
• Max. Power (180s): 1048.8W

Test Data

Detailed test data for each KV version and propeller combination is provided above. Motor temperature is motor surface temperature at 80% or 100% throttle running 10 minutes. Data above based on bench test are for reference only; comparison with that of other motor types is not recommended.

Packing List

Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact online customer service.
