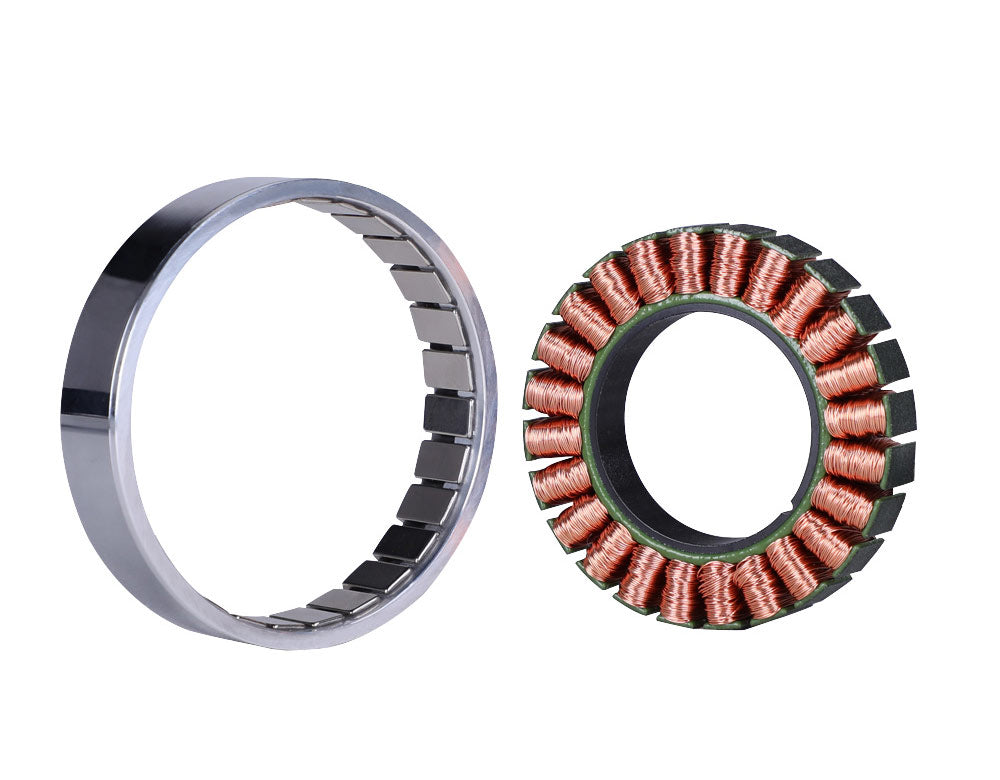

RO60 KV115

CubeMars RO60 KV115

The CubeMars RO series brushless DC outer rotor torque motor is designed for applications in exoskeleton robotics, collaborative robotic arms, as well as medical and aviation fields. Launched in December 2023 after a year of market research and engineering, the RO series builds on the R series with upgrades to address challenges in robot joint design, such as limited internal installation space and increased torque requirements.

Product Features

• Ultra-Low Cogging Torque: The RO series motor exhibits 50% lower tooth count torque compared to the R series, ensuring smoother operation at low speeds.
• Large Hollow Through-Hole: Compared to the GL series, the RO series motor has a larger hollow diameter, allowing flexible adaptation to various diameter requirements and versatile applications with a simple shaft replacement.
• Integrated Temperature and Hall Sensors: Real-time monitoring of motor temperature prevents damage due to abnormal temperatures, and Hall sensors provide precise positioning control.
• Aluminum Alloy Housing: The rotor uses an aluminum alloy housing, enhancing impact resistance, corrosion resistance, and offering customization possibilities for appearance. This also improves transparency in controlling raw material costs.
• Easy Installation: The stator features pin holes for easy assembly, and the product is equipped with magnetic pins and screws, greatly simplifying the installation process.

CubeMars RO60 Motor Specifications

• Rated Voltage: 48V
• Rated Current: 8.5A
• Rated Torque: 0.8N.m
• Peak Torque: 2.4N.m
• Rated Speed: 4200rpm
• Motor Weight: 248g
