MN1123KV53

T-Motor

NEW MN1123 KV53

NEW MN1123 KV53

$519.00 USD
$519.00 USD
Sale Sold out

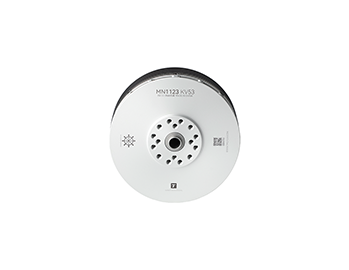

MN1123 KV53

Price: $519.00

Shipping: USD200 Consumption Free Shipping by International Express (Excl. Remote Areas and Special Items).

Classic Silver-and-Black Motor Design Optimized for Heavy-Lift UAVs

KV53 Voltage 24s
Max Thrust/Arm 47.5kg
Rated Thrust/Arm 20~22kg

Applicable Configurations

  • Multirotor 4-Rotor
  • Multirotor 6-Rotor
  • Multirotor 8-Rotor
  • Multirotor Coaxial

Core Applications

  • Heavy-Lift Logistics & Delivery
  • Fire Rescue and Emergency Supply
  • Agricultural and forestry crop protection and large-area spraying

Ultra-Long Service Life and High Reliability

  • ≥ 2000 hours MTBF
  • -30℃~55℃ Stable Operating Temperature

Dual Dust-Mesh Structure for Rotor and Stator

  • IP45 protection standard, balancing lightweight design with protective performance
  • IP-Rated Water
  • IP-Rated Dust

Effectively resists water spray or heavy rain, ensuring stable motor operation in various harsh weather conditions.

Integrated High-Efficiency Cooling System

  • Built-in one-piece die-cast cooling fin structure doubles the heat dissipation area; compared with traditional split cooling structures, it enables faster heat transfer and higher cooling efficiency, reducing winding temperature by 5~8℃

MN1123 Recommended Setup

  • Motor: MN1123
  • KV: 53
  • ESC: M200A 24S
  • Propeller: VZ42

Customization Options

  • Tailored solutions based on your application and performance requirements
  • Flexible customization to meet specific needs and create greater value
  • Custom Coating
  • Custom Logo
  • Temperature Sensor
  • Custom KV
  • Custom Hole Pattern
  • Custom Cable Length
  • More Tailored Solutions

Detail information

Specifications

Technical Drawing

Specification

Model No. MN1123
Motor Size Φ120.5*58.9mm
Stator Technology Imported Silicon Steel Sheet; Anti-Rust treatment; 150℃ high Temperature-Resisting Coatings
Copper Wire 220℃ High Temperature Resistance
Magnet Level 180℃ High Temperature Resistance
Coil Insulation Test 1000V Withstand Voltage Test
IP IP45
Configuration 36N40P
Rotor Dynamic Balance Standard ≤30mg
Bearing Imported 6902ZZ
Output Shaft Diameter 12mm

Wire Specification/Length: Enameled Wire*150mm

Technical Parameters

KV Value 53
Idle Current (20V) 2.0A
Max Power (180s) 2400W
Internal Resistance 35mΩ
Rated Voltage (Lipo) 24S
Peak Current 108A
Max Thrust 47.5kg
Motor Weight (Incl. Cable) 1425g
Package Weight 1820g

Recommended Combinations

  • Motor: MN1123 KV53
  • ESC: M200A24S
  • Propeller: VZ42x16.5
  • Rated Voltage (Lipo): 24S

Test Data

Type Propeller Voltage (V) Throttle Current (A) RPM Thrust (gf) Power (W) Efficiency (g/W) Torque (N·m) Operating Temperature (℃)
MN1123 KV53 VZ42x16.5 91.95 40% 10.76 1745 9748 989 9.85 4.67 89℃ (Ambient Temp: 25)
92.00 42% 12.25 1824 10640 1127 9.44 5.09
91.94 44% 13.76 1901 11660 1265 9.22 5.55
91.97 46% 15.40 1975 12636 1416 8.92 6.01
92.00 48% 17.29 2052 13750 1591 8.64 6.51
91.98 50% 19.42 2129 14919 1786 8.35 7.06
92.02 52% 21.68 2205 16171 1995 8.11 7.62
91.99 54% 23.99 2254 17354 2207 7.86 8.16
92.00 56% 26.28 2353 18573 2418 7.68 8.72
91.99 58% 28.96 2427 19906 2664 7.47 9.32
92.01 60% 31.82 2501 21215 2928 7.25 9.93
92.02 62% 34.93 2575 22634 3214 7.04 10.58
91.98 64% 38.09 2648 24040 3503 6.86 11.22
92.03 66% 41.24 2716 25388 3796 6.69 11.85
91.98 68% 44.69 2787 26877 4111 6.54 12.49
92.00 70% 48.36 2857 28307 4449 6.36 13.16
91.99 80% 69.16 3184 35956 6362 5.65 16.73
92.02 90% 87.91 3414 41739 8089 5.16 19.48
91.95 100% 108.65 3632 47460 9990 4.75 22.19

Notes: Motor temperature is the motor surface temperature after running on 80% for 10 min. (Based on T-MOTOR test bench(es), all data are for reference only. T-MOTOR reserves the right of final interpretation.)
