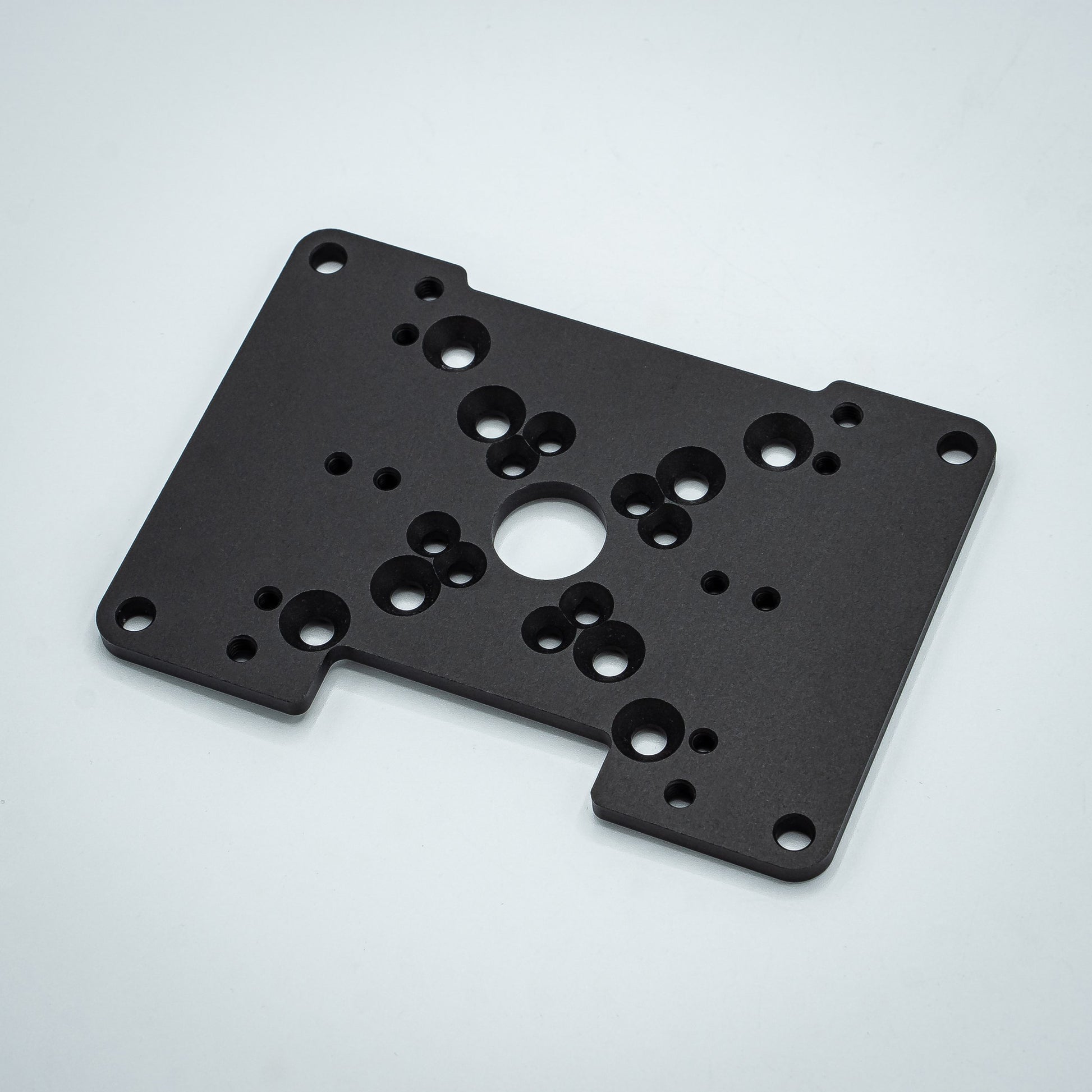

Motor Mounting Plate

Motor Mounting Plate

Mount the ODrive on the back of a motor.

Heat spreader plate or enclosure required; you cannot mount the ODrive Pro directly.

Screws not included.

CAD

Fits motors with square screw patterns (see drawing):

• M3 x4 on 25mm diameter circle
• M3 x4 on 30mm diameter circle (fits D5312s)
• M4 x4 on 40mm diameter circle (fits M8325s)
• M4 x4 on 65mm diameter circle

SKU: ACC-MP01
