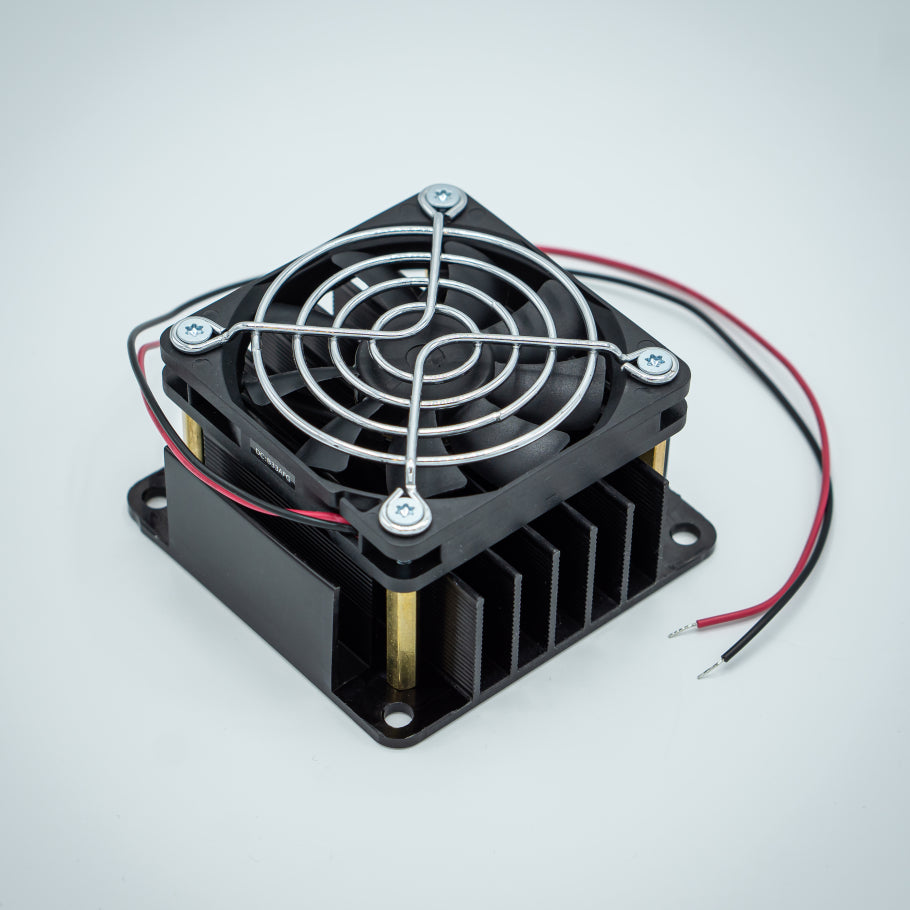

Heatsink and Fan for ODrive Pro/S1

Heatsink and Fan for ODrive Pro/S1

ODrive Pro has a 12V fan output. ODrive S1 does not, so it will require an external 12V source for the fan.

Included Components (with-fan variant):

• 70x70x25 mm heatsink
• 60x60mm 12V fan
• Thermal pad (phase change, gray)
• 2x M3 6mm button head screws (torx) for mounting the heatsink to the enclosure or heat spreader plate
• Finger guard
• 4x M3 6mm flathead screws (torx)
• 4x M3 16mm screws (torx)
• 4x M3 x 25mm standoffs
• CAD files (note the multiple tabs)

SKU with fan: ACC-HS01-F1
