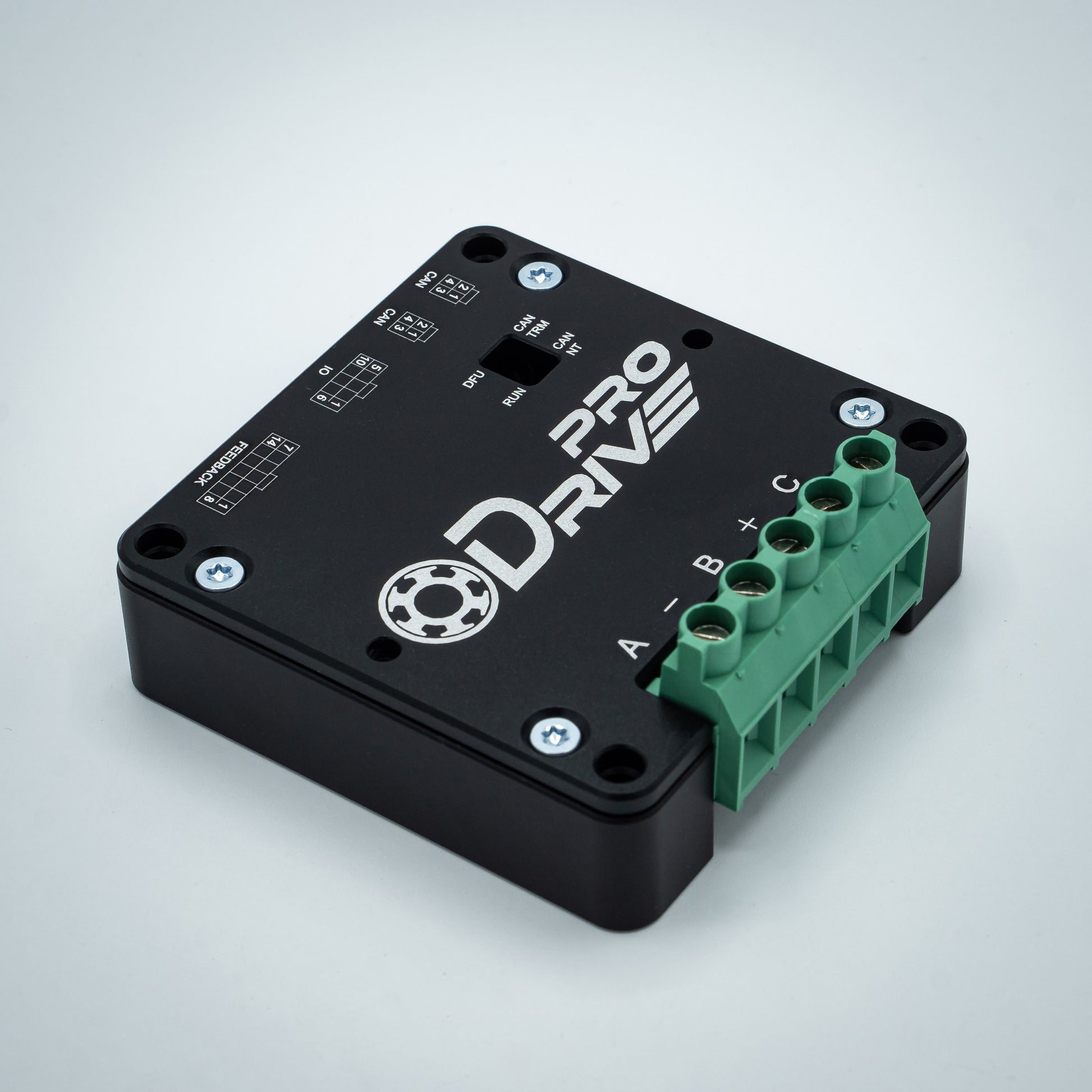

Enclosure for ODrive Pro

Enclosure for ODrive Pro

Comes as a kit, assembly required. ODrive Pro is sold separately.

Specifications

• Outer dimensions: 70x70mm
• Mounting through-holes: 4.2mm, spaced at 60x60mm
• Weight: 120g

SKU: ACC-HS03

Kit Contents

• Thermal pad for ODrive Pro
• Enclosure bottom and lid
• 4x M3 6mm buttonhead screws (torx) for mounting the ODrive onto the enclosure bottom
• 4x M3 6mm flathead (countersink) screws (torx) for mounting the lid
• 4x M4 30mm buttonhead screws (torx) for mounting the enclosure to your application (such as DIN rail or your robot)

CAD files available to download here. Note there are multiple tabs.
