16384 CPR Absolute RS485 Encoder with Cable for ODrive Pro or S1, Connector Orientation: Radial, Cable: No Cable

16384 CPR Absolute RS485 Encoder with Cable for ODrive Pro or S1

Brand: ODRIVE

Regular price: $49.00 USD
Shipping calculated at checkout.

Cable options:

• No cable
• For ODrive S1: 0.5m, 1m, 2m
• For ODrive Pro: 0.5m, 1m, 2m

Connector Orientation:

• Radial
• Axial

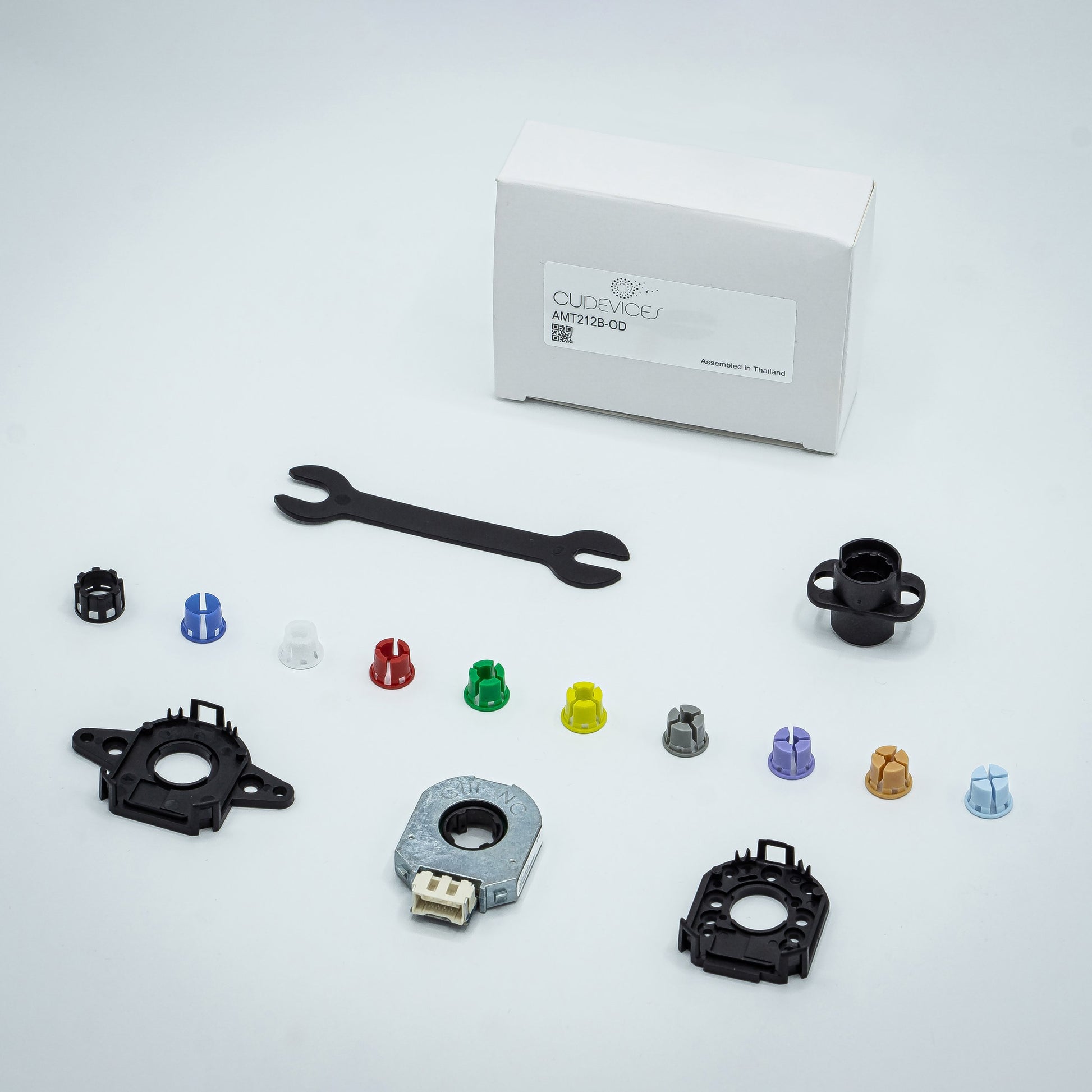

This is the CUI Devices AMT21 series encoder enhanced with custom ODrive firmware that enables higher speed and less jitter.

Specifications:

• 14 bit Absolute RS485 Encoder
• Maximum speed: 12,000rpm

Cable length options: 0.5m, 1m, 2m

Cables can be purchased separately:

• Cables for ODrive Pro
• Cables for ODrive S1

Collars to fit shaft sizes: 2mm, 3mm, 1/8in, 4mm, 3/16in, 5mm, 6mm, 1/4in, 8mm

See datasheet for more information, except that max speed is 12,000rpm and the protocol is different.

Make sure to use instructions for AMT212x-V-OD when following the setup guide.

Not compatible with ODrive v3.6

SKUs:

• Radial connector orientation: CUI-AMT212B-V-OD
• Axial connector orientation: CUI-AMT213B-V-OD

For SKUs with cable, please see the product catalog.
