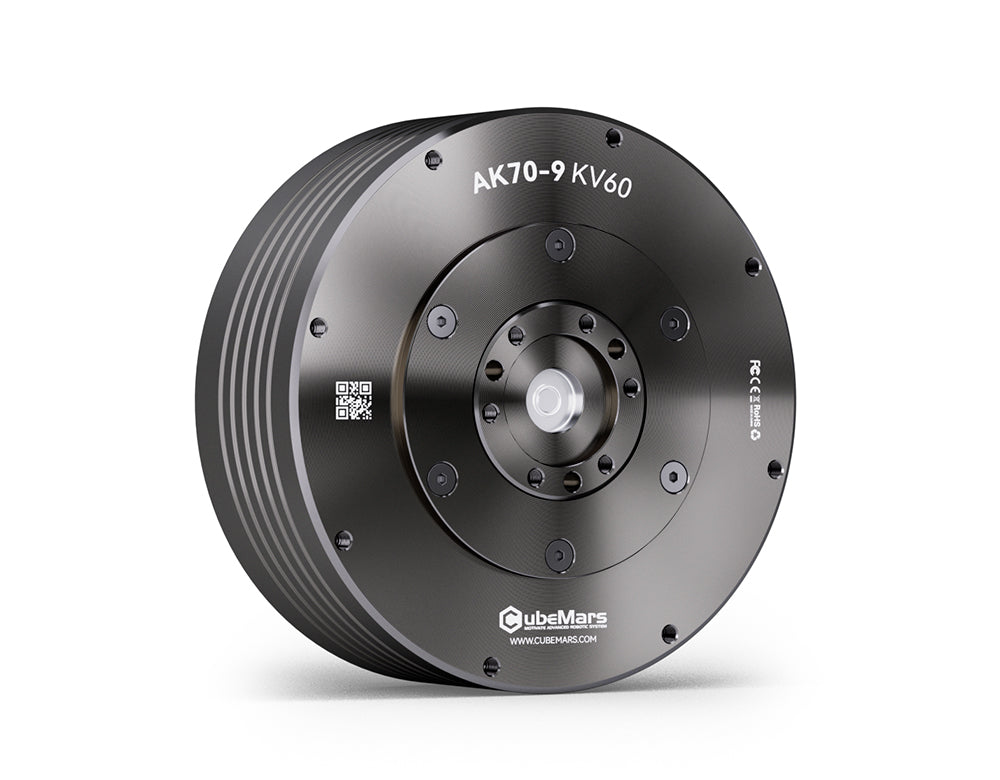

AK70-9 KV60

CubeMars AK70-9 KV60

Regular price: $518.90 USD
Sale price: $498.90 USD
Shipping calculated at checkout.

Product Information

• Model: AK70-9
• KV: 60

Specifications

• Rated Voltage: 24V
• Rated Power: 350W
• Rated Torque: 1.8 Nm
• Peak Torque: 4.5 Nm
• Rated Speed: 520 rpm
• Maximum Speed: 800 rpm
• Weight: 1.4 kg
• Outer Diameter: 70 mm
• Length: 90 mm
• Shaft Diameter: 10 mm
• Communication Interface: CAN, UART
• Encoder: 15-bit
• Reduction Ratio: 9:1
• Mounting: Flange
• Operating Temperature: -20°C to 50°C
• Protection Level: IP54

Features

• Integrated servo drive
• High torque density
• Compact and lightweight design
• Low noise operation
• High precision encoder
• Suitable for robotic joints, exoskeletons, and AGVs

Compatibility

• Compatible with CubeMars controllers and accessories
• Suitable for use in robotics, automation, and research applications

Certifications

• CE certified
• RoHS compliant

Product Notes

• Ensure correct wiring and configuration before operation
• Refer to the user manual for installation and safety instructions
• Use within specified voltage and temperature ranges for optimal performance

Shipping Information

• Shipping calculated at checkout
• Product weight: 1.4 kg
