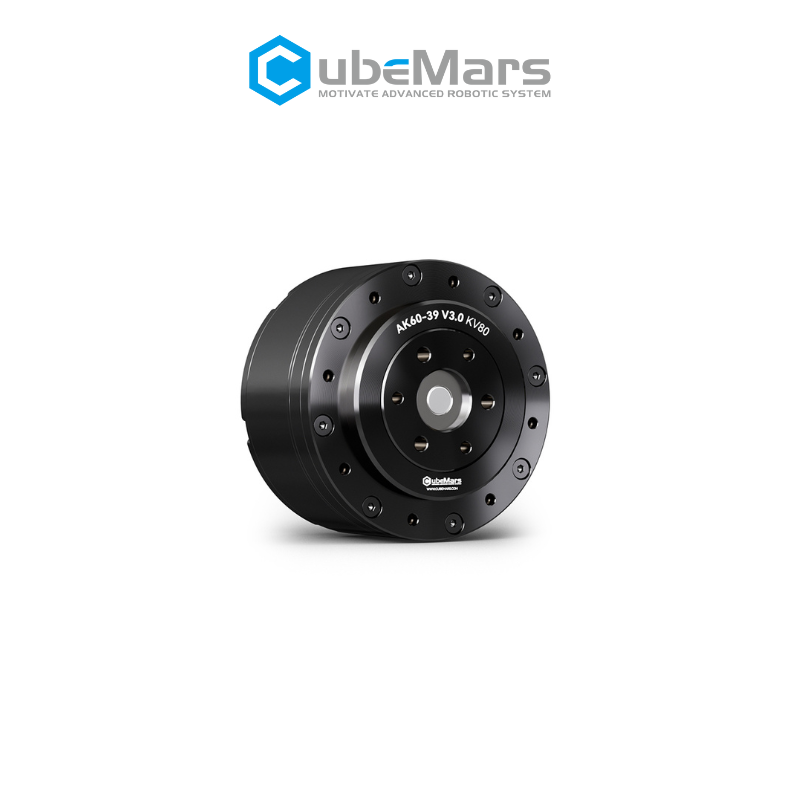

AK60-39 V3.0

AK60-39 V3.0

Product Information

Overview:
The AK60-39 V3.0 is a high-performance brushless DC motor designed for robotics, exoskeletons, and other demanding applications requiring high torque and efficiency. This motor features integrated driver electronics, compact design, and advanced control capabilities.

Specifications:

• Model: AK60-39 V3.0
• Rated Voltage: 24V
• Rated Power: 350W
• Rated Torque: 2.5 Nm
• Peak Torque: 7.5 Nm
• Rated Speed: 200 rpm
• Peak Current: 30A
• Motor Weight: 800g
• Motor Diameter: 60mm
• Motor Length: 39mm
• Shaft Diameter: 10mm
• Communication Interface: CAN, UART
• Encoder: 14-bit absolute encoder
• Control Modes: Torque, velocity, position
• Cooling Method: Natural cooling
• Protection: Overcurrent, overvoltage, overtemperature
• Mounting: Flange mounting

Features:

• Integrated driver and controller
• High torque density
• Low cogging torque
• Precise position, velocity, and torque control
• Compact and lightweight design
• Suitable for robotic joints, exoskeletons, and mobile platforms

Compatibility:

• Compatible with a wide range of robotic controllers and platforms supporting CAN or UART communication.
• Suitable for use in collaborative robots, exoskeletons, robotic arms, and mobile robots.

Certifications:

• CE certified
• RoHS compliant

Warnings:

• Ensure correct wiring and power supply voltage before operation.
• Do not exceed rated current and voltage to avoid damage.
• Use appropriate heat dissipation measures in high-load applications.

Shipping Information:

• Shipping weight: 1.2 kg
• Package dimensions: 15 x 12 x 10 cm

Product Notes:

• The AK60-39 V3.0 is designed for professional and research applications.
• Firmware updates may be available for enhanced performance and compatibility.
• Refer to the user manual for detailed installation and operation instructions.
