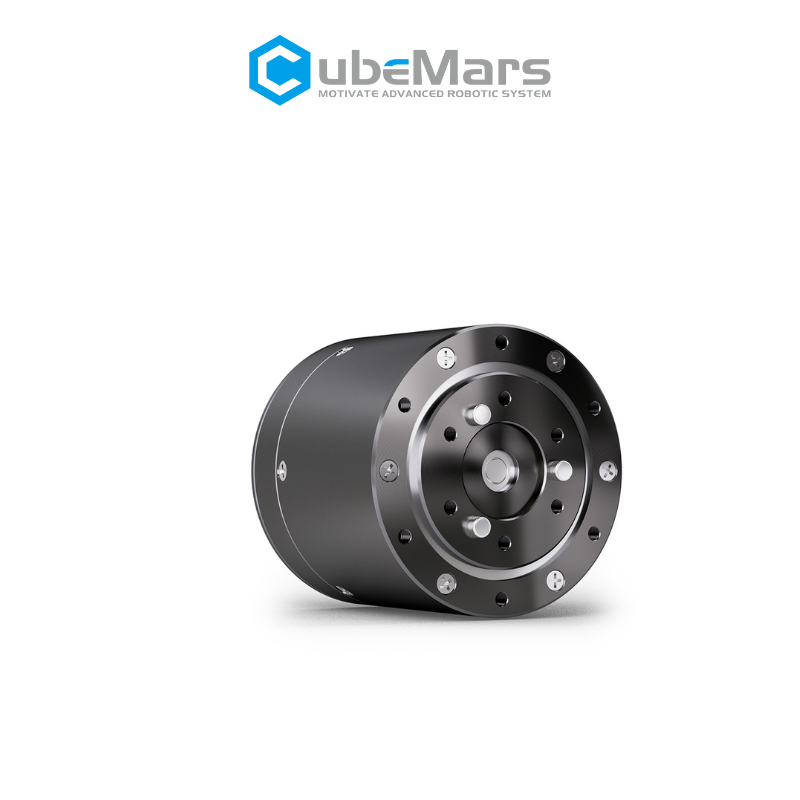

AK45-36 KV80

AK45-36 KV80

SKU: AK45-36 KV80

Price: $185.90 USD

Shipping calculated at checkout.

Driver Board: Yes / No

Product Information

• Model: AK45-36
• KV: 80
• Regular price: $185.90 USD

Specs

• Outer Diameter: 45 mm
• Stator Height: 36 mm
• KV: 80
• Weight: 420 g
• Shaft Diameter: 8 mm
• Max Continuous Current: 30 A
• Max Instantaneous Current: 60 A
• Max Continuous Power: 1200 W
• Max Instantaneous Power: 2400 W
• Resistance: 90 mΩ
• Inductance: 60 μH
• No-load Current: 1.2 A
• Peak Torque: 2.5 Nm
• Rated Torque: 1.2 Nm
• Efficiency: 85%
• Voltage Range: 12–48 V
• Hall Sensor: Optional
• Encoder: Optional
• Cooling Method: Natural Cooling
• Mounting: Flange Mount
• Protection Level: IP40
• Operating Temperature: -20°C to 80°C
• Storage Temperature: -40°C to 125°C

Features

• High torque density
• Low cogging torque
• High efficiency
• Compact design
• Suitable for robotics, AGV, gimbal, and automation applications

Compatibility

• Compatible with CubeMars driver boards
• Supports various encoders and hall sensors (optional)

Certifications

• CE Certified
• RoHS Compliant

Product Notes

• Driver board available as an option
• Please refer to the datasheet for detailed wiring and installation instructions
