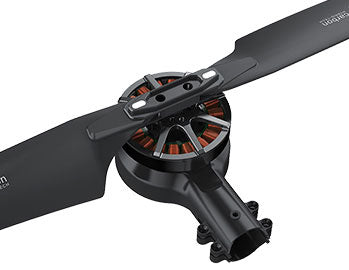

6007Ⅱ-X Combo Pack Type 6S/12S (Integrated Propulsion System) UAV Motor

Revolutionize your propulsion system with the 6007Ⅱ-X. This integrated powerhouse ensures optimal efficiency and reliability. Upgrade to the future of drone propulsion – choose 6007-X for unparalleled performance.

Direction

  • CW
  • CCW

Parameter

  • MN6007II KV320 + Alpha60A LV
  • MN6007II KV160 + Alpha60A HV

Quantity

  • Best Match
  • MF2211-2PCS/PAIR

Includes 1 CW + 1 CCW

CAD: $52 $54.9

  • Polymer propellers are not recommended for coaxial setups
  • Prop Strength X2
  • Ultimate durability, longer life time
  • Energy-Snubber

Product Detail

USD200 Consumption Free Shipping by International Express (Excl. Remote Areas and Special Items).

Specifications

Product Model: 6007Ⅱ-X KV160
Exposed wire length: 630mm
Arm size: 122.5*69*53.5mm
Boom weight (incl. wire): 335g
Configuration: 12N22P
Shaft Diameter: IN:6mm
Idle Current(24V): 0.6A
Rated Voltage(Lipo): 6-12S
Internal Resistance: 227mΩ
IP: /
Peak Current(180s): 18A
ESC: ALPHA 60A 12S V1.2
Max Power (180S): 1000W
Propeller Recommendation: MF2211

Product Model: 6007Ⅱ-X KV320
Exposed wire length: 640mm
Arm size: 122.5*69*53.5mm
Boom weight (incl. wire): 330g
Configuration: 12N22P
Shaft Diameter: IN:6mm
Idle Current(24V): 1.5A
Rated Voltage(Lipo): 6S
Internal Resistance: 50mΩ
IP: /
Peak Current(180s): 39A
ESC: ALPHA60A 6S
Max Power (180S): 1200W
Propeller Recommendation: MF2211

Test Data

Type: 6007Ⅱ-X KV160 (Alpha 60A 12S)
Propeller: MF2211

Throttle (%) Voltage (V) Current (A) Power (W) RPM Torque (N·m) Thrust (g) Efficiency (g/W) Operating Temperature (℃)
40% 47.92 3.65 175 2642 0.52 1926 11.02 64
45% 47.89 4.89 234 2926 0.63 2362 10.09
50% 47.85 6.40 306 3201 0.75 2831 9.25
55% 47.81 8.13 389 3467 0.88 3322 8.55
60% 47.75 10.17 485 3730 1.01 3846 7.92
65% 47.70 12.39 591 3975 1.15 4369 7.39
70% 47.64 14.84 707 4206 1.29 4895 6.92
75% 47.57 17.51 833 4421 1.42 5419 6.50
80% 47.50 20.34 966 4624 1.55 5926 6.13
85% 47.45 22.69 1076 4771 1.65 6291 5.84
90% 47.44 22.79 1081 4768 1.65 6299 5.83
95% 47.44 22.85 1084 4760 1.65 6297 5.81
100% 47.44 22.91 1087 4754 1.65 6291 5.79

Type: 6007Ⅱ-X KV320 (Alpha 60A 6S)
Propeller: MF2211

Throttle (%) Voltage (V) Current (A) Power (W) RPM Torque (N·m) Thrust (g) Efficiency (g/W) Operating Temperature (℃)
40% 23.90 5.14 123 2324 0.40 1486 12.08 62
45% 23.85 7.26 173 2616 0.50 1890 10.92
50% 23.79 9.73 231 2892 0.61 2320 10.02
55% 23.72 12.71 301 3158 0.72 2739 9.09
60% 23.64 16.04 379 3414 0.84 3194 8.42
65% 23.54 20.07 472 3664 0.97 3698 7.83
70% 23.43 24.41 572 3893 1.10 4187 7.32
75% 23.31 29.20 681 4106 1.22 4675 6.87
80% 23.19 34.30 795 4308 1.34 5135 6.46
85% 23.05 39.81 918 4499 1.45 5578 6.08
90% 22.91 45.53 1043 4666 1.56 6005 5.76
95% 22.78 50.81 1158 4802 1.66 6374 5.51
100% 22.73 52.86 1201 4846 1.69 6495 5.41

Notes: Motor temperature is the motor surface temperature after running at 100% for 10 mins.
(Based on T-MOTOR test bench(es), all data are for reference only. T-MOTOR reserves the right of final interpretation.)

Matching Table

Arm Set Compatible

Tube Size Motor KV Default ESC Default Propeller Propeller Options Custom ESC
501-X 25mm/30mm MN501-S KV240 ALPHA 60A 12S V1.2 MF1503 P15*5, FA15.2*5 FLAME 60A 12S
(25mm=30mm+ adapter) KV300 ALPHA 40A 6S MF2009 P20*6, FA20.2*6.6 ALPHA 60A 12S V1.2, AIR 40A
KV360 MF1806 P18*6.1, FA18.2*5.9
505-X MN505-S KV320 ALPHA 60A 6S MF2211 P22*6.6, FA22.2*7.2 FLAME 60A 12S
KV380 MF1806 P18*6.1, FA18.2*5.9
601-X MN601-S KV170 ALPHA 60A 12S V1.2 MF2009 P20*6, FA20.2*6.6 FLAME 60A 12S
KV320 ALPHA 60A 6S P20*6, FA20.2*6.6
605-X MN605-S KV170 ALPHA 60A 12S V1.2 MF2211 P22*6.6, FA22.2*7.2 FLAME 60A 12S
KV320 ALPHA 60A 6S
701-X MN701-S KV135 ALPHA 80A 12S Round MF2614 P24*7.2-10mm Hole, G24*7.8, FA24.2*7.9 /
705-X MN705-S KV125 ALPHA 80A 12S Round MF2614 G26*8.5, FA26.2*8.5 /
U8Ⅱ-X U8 Lite-X XU8-X U8Ⅱ U8 Lite XU8 KV85 ALPHA 60A 12S V1.2 MF2815 G28*9.2, FA28.2*9.2, FLAME 60A 12S
KV100
KV150 ALPHA 60A 6S
KV190
6007Ⅱ-X 25mm/28mm 6007Ⅱ KV160 ALPHA 60A 12S V1.2 MF2211 FA22.2*7.2, NS22*6.6, P22*6.6, FLAME 60A 12S
KV320 ALPHA 60A 6S
P60-X 25mm/30mm P60 KV170 FLAME 60A 12S MF2211 P22*6.6, G22*7.2
(25mm=30mm+ adapter)
P80-X 30mm/35mm or 40mm P80 KV100/KV120 ALPHA 80A 12S MF3016 P30*10, G30*10.5, FLAME 80A 12S, FLAME 100A 14S
(Notify tube size)
X-501 25mm/30mm MN501-S KV240 ALPHA 60A 12S V1.2 P15*5 FLAME 60A 12S
(25mm=30mm+ adapter) KV300 ALPHA 40A 6S P20*6 ALPHA 60A 6S, AIR 40A
KV360 P18*6.1
X-505 MN505-S KV320 ALPHA 60A 6S P22*6.6 FLAME 60A 12S
KV380 P18*6.1
X-601 MN601-S KV170 ALPHA 60A 12S V1.2 P20*6 FLAME 60A 12S
KV320 ALPHA 60A 6S
X-605 MN605-S KV170 ALPHA 60A 12S V1.2 P22*6.6 FLAME 60A 12S
KV320 ALPHA 60A 6S
X-U8Ⅱ X-U8 Lite U8Ⅱ U8 Lite KV85 ALPHA 60A 12S V1.2 G28*9.2 FLAME 60A 12S
KV100
KV150 ALPHA 60A 6S
KV190
X-701 30mm/35mm MN701-S KV135 ALPHA 80A 12S Round P24*7.2-10mmHole G24*7.8 /
(30mm=35mm+ adapter)
X-705 MN705-S KV125 ALPHA 80A 12S Round G26*8.5 /

NOTE: order qty should be an EVEN number.
