20480 CPR Encoder with ODrive v3 Cable

20480 CPR Encoder with ODrive v3 Cable

Regular price: $39.00 USD
Shipping calculated at checkout.

Max speed: 3000 RPM

The CUI AMT10E2-V capacitive encoder. It has 20480 CPR resolution, and index pulse.

The increased resolution can help improve positional stiffness and velocity estimation accuracy, as compared to the AMT102.

The cable for this encoder does not work with ODrive Pro or ODrive S1.

Comes with a custom 2m shielded cable that has the correct pinout for ODrive v3. The cable will not fit ODrive Pro without modification.

The kit contains two different mounting bases, and a selection of shaft collars to fit various shaft diameters.

Specs

• Encoder: CUI AMT10E2-V
• Resolution: 20480 CPR
• Index pulse: Yes
• Max speed: 3000 RPM
• Cable: 2m shielded, ODrive v3 pinout

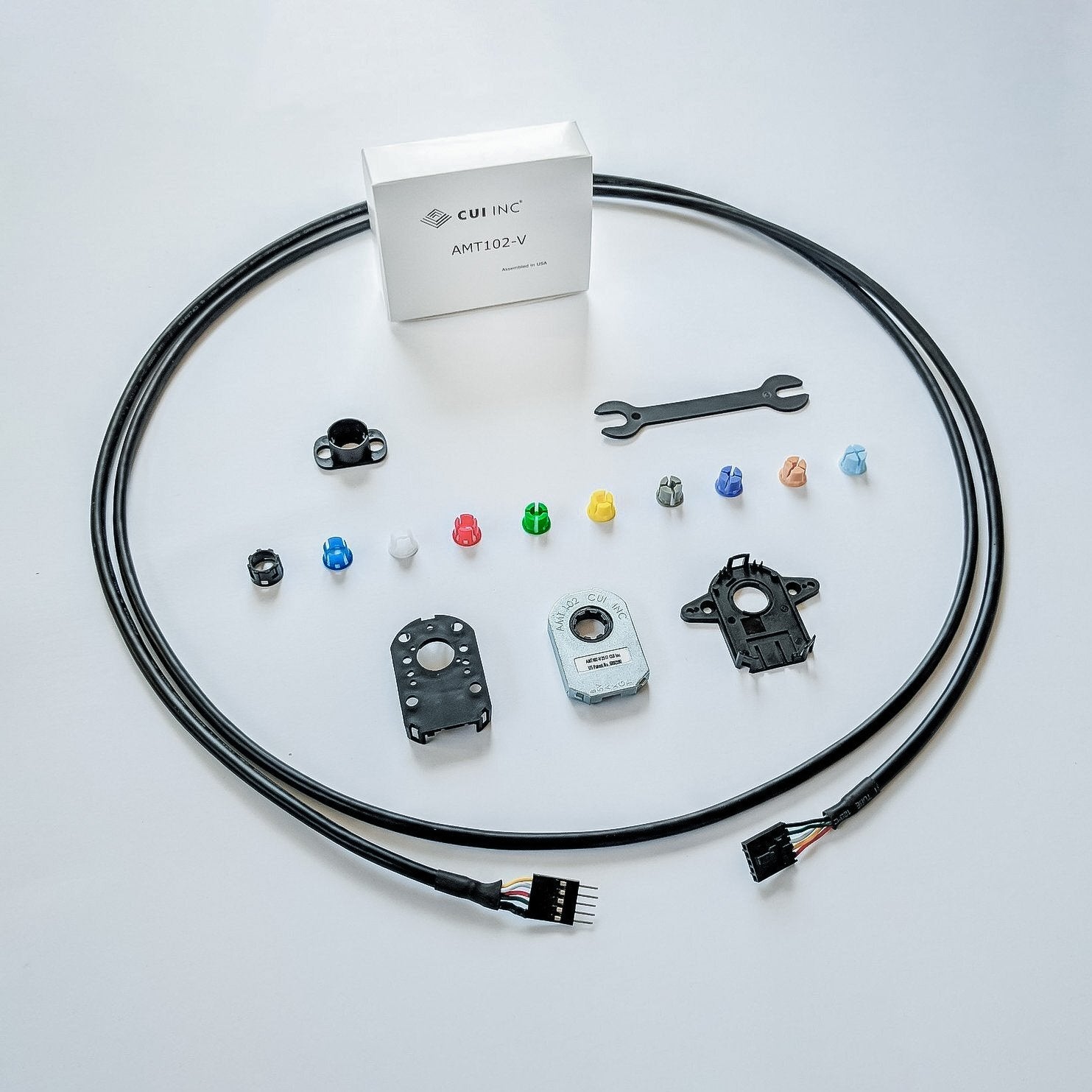

Kit Contents

• Encoder
• Custom 2m shielded cable
• Two different mounting bases
• Selection of shaft collars for various shaft diameters

SKU: CUIAMT10E2
